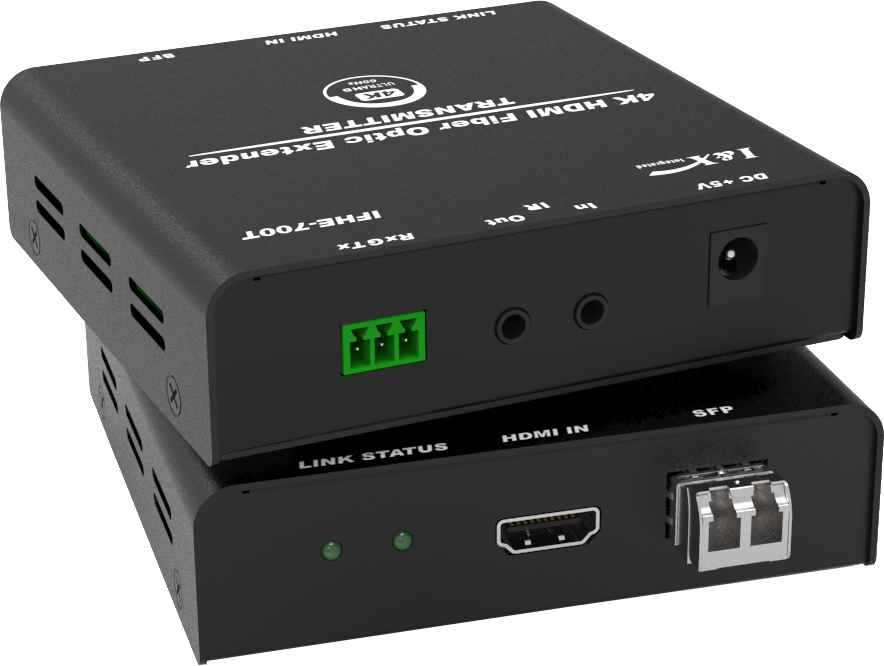

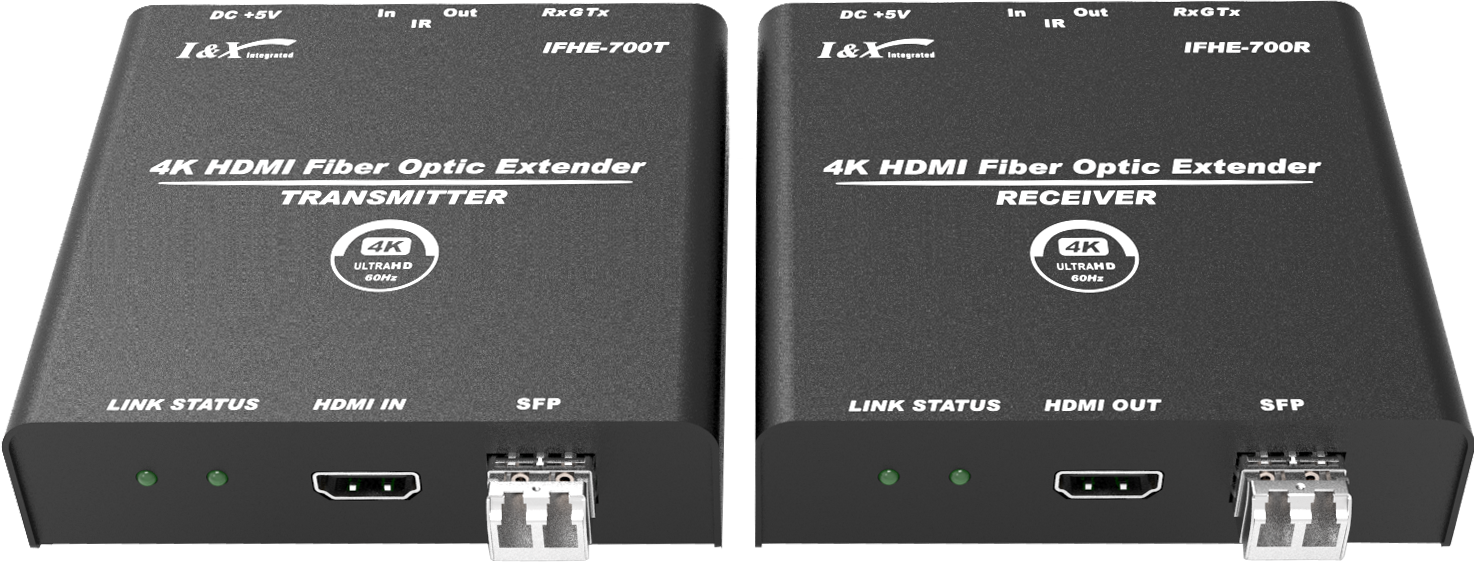

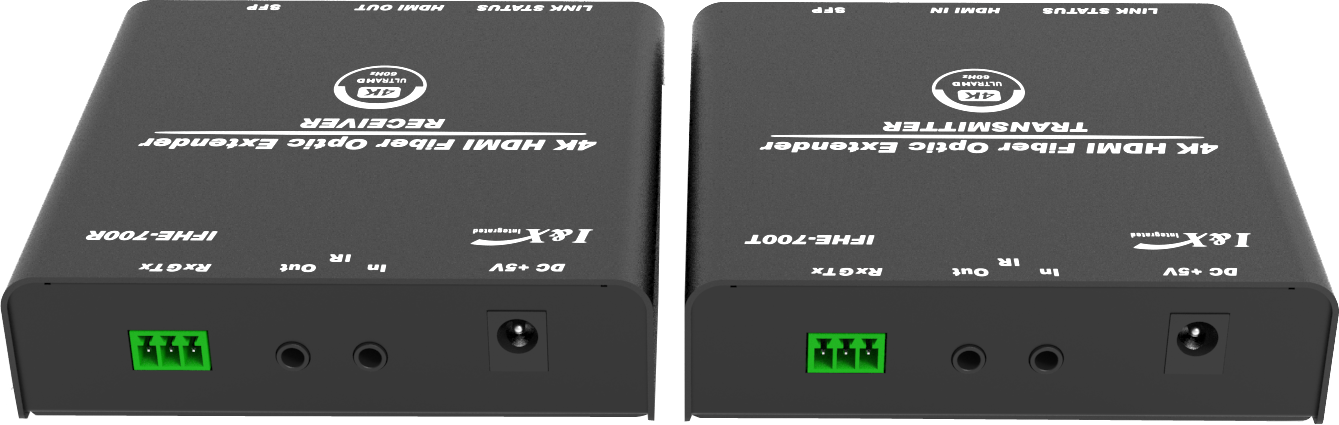

The IFHE-700T is a high-performance HDMI fiber optic extender designed to reliably transmit HDMI video signals over long distances via fiber optic cable. It is designed to overcome the distance limitations of standard HDMI cables, maintaining original video quality with stable signal transmission even in long-distance environments, delivering optimal performance across a wide range of professional AV and broadcast environments.

The IFHE-700T features an SFP (Small Form-factor Pluggable) type optical module, allowing users to select the optical module suited to their environment, with excellent maintainability and system scalability. It also supports ultra-high-resolution video up to 4K UHD (3840x2160) at 60Hz, reliably delivering sharp, vivid picture quality without loss even over long distances.

The IFHE-700T can be widely used across various environments requiring long-distance video transmission, including broadcasting stations, performance venues, churches, control rooms, control centers, conference rooms, educational facilities, exhibition halls, digital signage, and industrial video systems. With easy installation, excellent compatibility, and reliable fiber optic transmission technology, it allows existing HDMI-based systems to be easily expanded, providing an optimal HDMI fiber transmission solution for reliably transmitting high-resolution video over long distances.

Product Features

• Supports resolutions up to 3840x2160@60Hz
• Supports HDCP 1.4/2.2
• Supports RS-232C
• SFP optical module (LC type)
• KC certified

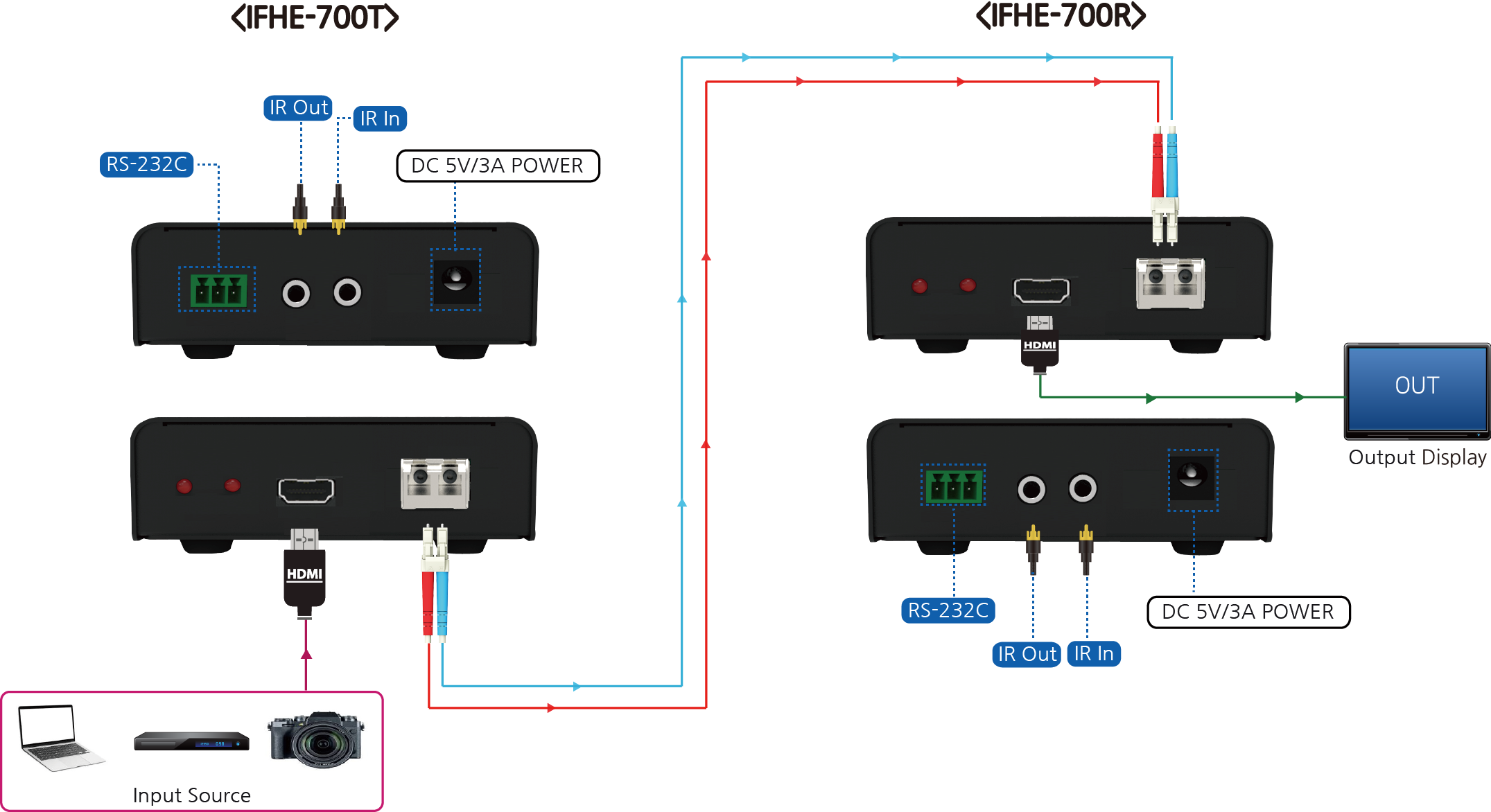

System Diagram
