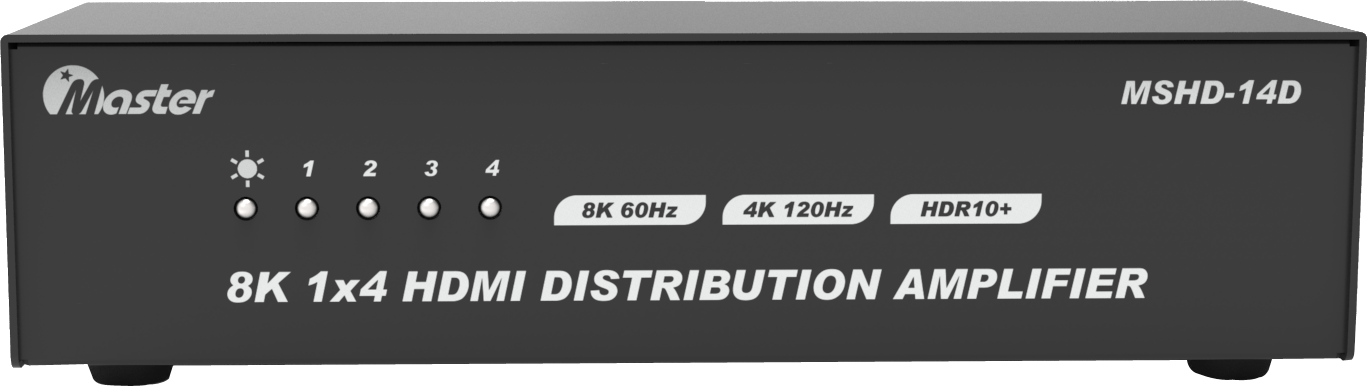

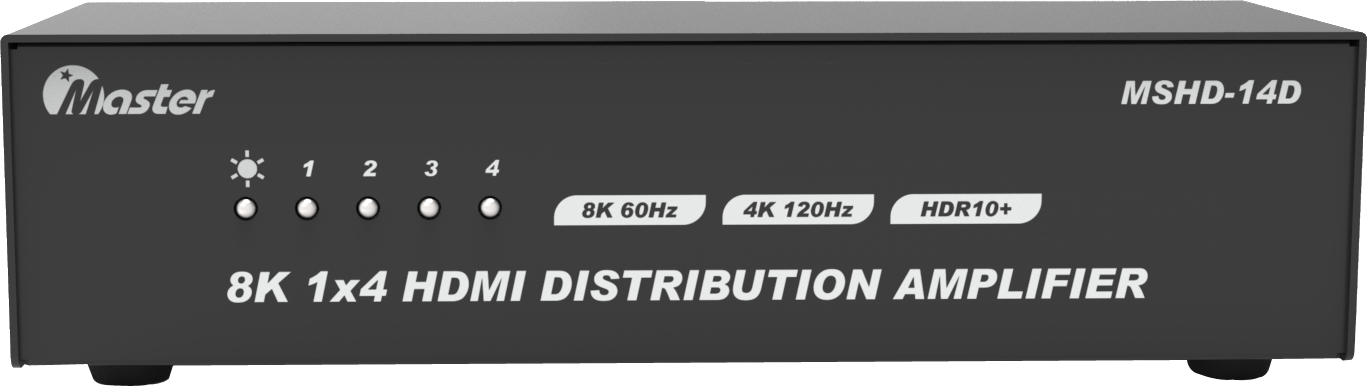

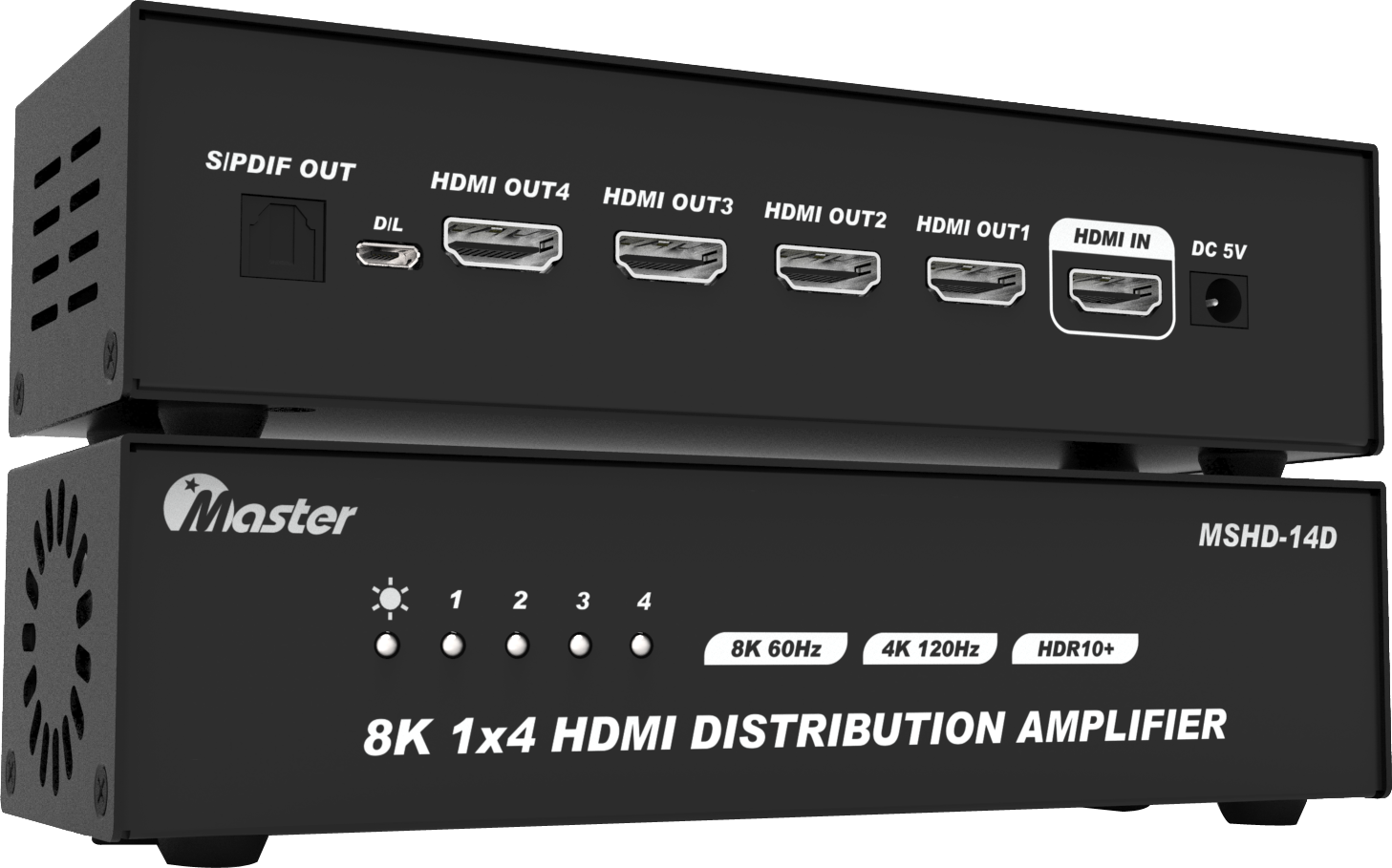

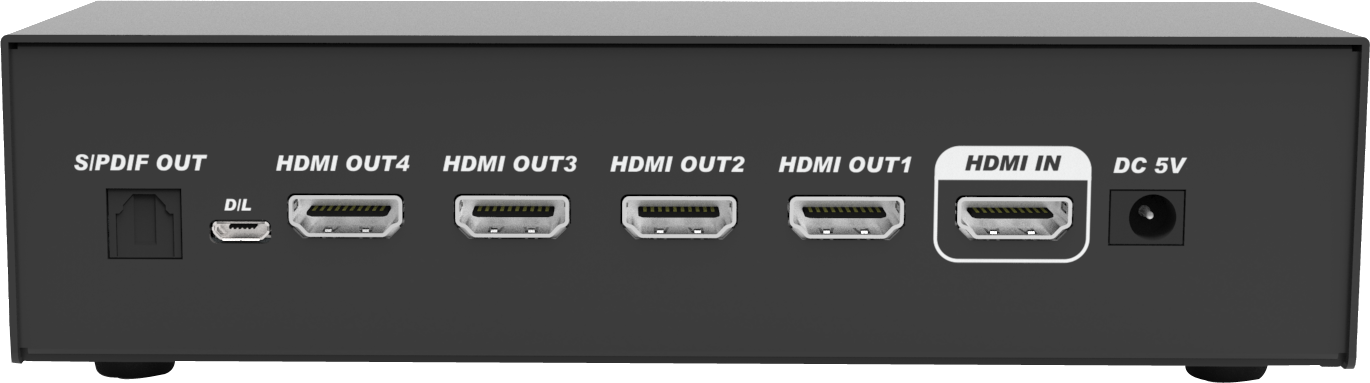

The MSHD-14D is a high-performance HDMI splitter designed to reliably distribute a single HDMI input signal to up to 4 identical HDMI outputs. It can simultaneously output a single video source to multiple displays with identical picture quality, providing efficient signal distribution for a wide range of AV systems and digital video environments.

The MSHD-14D supports ultra-high-resolution video signals of up to 8K UHD (7680x4320) at 60Hz, delivering outstanding, sharp picture quality without compromise. Designed to reliably process high-bandwidth HDMI signals, it minimizes signal loss and quality degradation, providing stable, reliable performance even during extended, continuous operation.

The MSHD-14D easily connects a wide range of HDMI output devices — such as PCs, laptops, set-top boxes, media players, game consoles, and cameras — with HDMI input devices including monitors, TVs, projectors, and LED displays. It can be installed and used conveniently without complex setup, allowing anyone to easily configure the system, and offers excellent compatibility with a wide range of HDMI-based equipment.

It is well-suited for a variety of professional video environments that require outputting a single video signal to multiple displays simultaneously, including broadcasting stations, churches, performance venues, conference rooms, educational facilities, exhibition halls, digital signage, control rooms, and control centers.

Product Features

• Supports 8K (7680x4320)@60Hz and 4K (3840x2160)@120Hz (YCbCr 4:2:0 only)
• Supports HDMI 2.1 Ver. / HDCP (2.3, 2.2, 1.4) Ver.
• Data transfer rate: 48.0Gbps
• Supports HDR10+
• Automatic downscaler function
• Supports S/PDIF digital audio de-embedded output
• KC certified

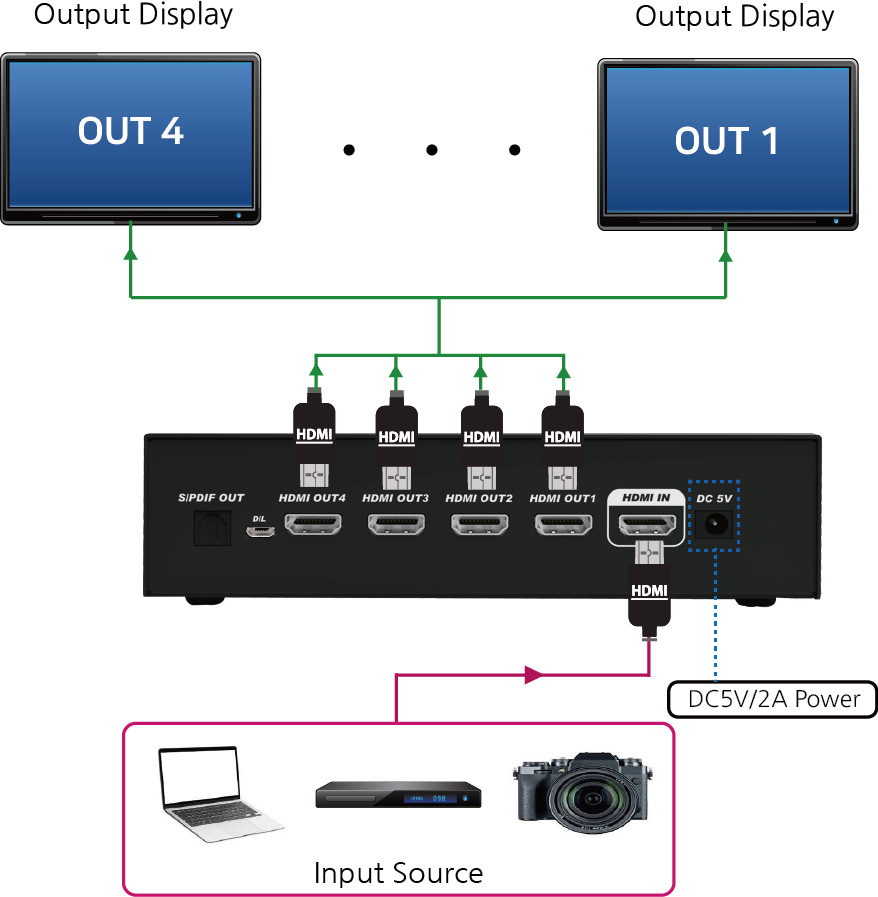

System Diagram
