MSHG-800PLUS
MSHG-800PLUS 이미지 1

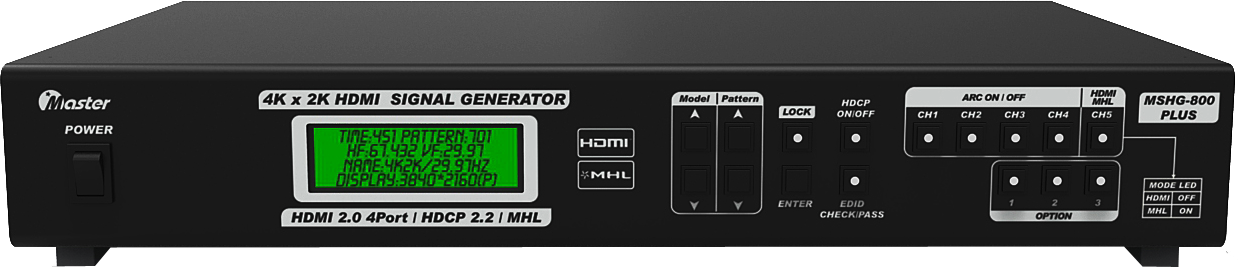

MSHG-800PLUS 이미지 2

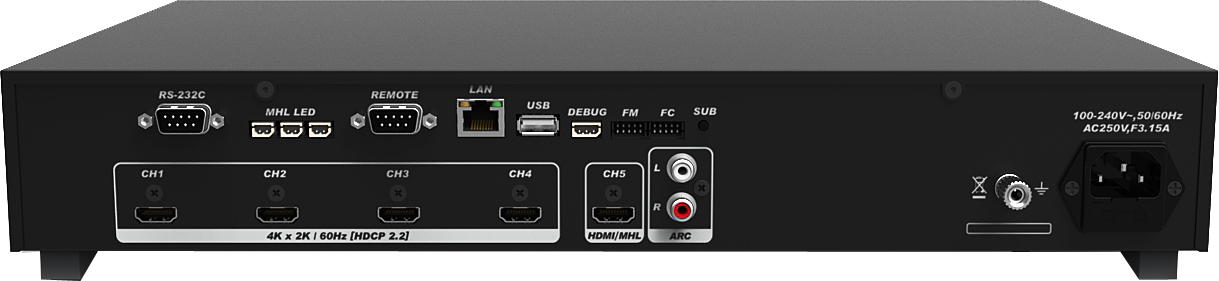

MSHG-800PLUS 이미지 3

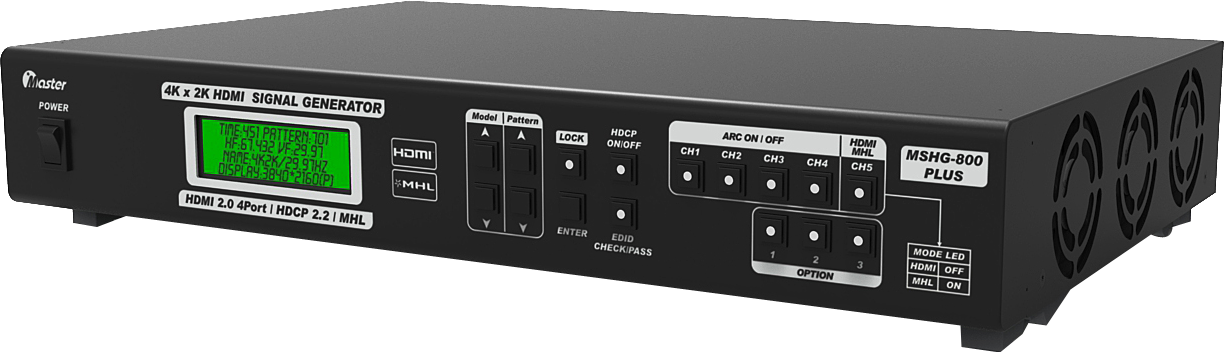

MSHG-800PLUS 이미지 4

Overview

MSHG-800PLUS is a professional HDMI test instrument designed for the development, manufacturing, and quality verification of displays and video devices equipped with HDMI interfaces.


Supporting the latest HDMI standards, it enables the generation, analysis, and testing of a wide range of video signals, providing an optimized test environment for efficiently verifying product performance and reliability.


The MSHG-800PLUS features four ports supporting HDMI 2.0 & HDCP 2.2 and one switchable port supporting HDMI 1.4 or MHL 2.0, allowing convenient testing of various HDMI-based devices and mobile interfaces within a single integrated system.


Its multi-port architecture enables the implementation of diverse test configurations, making it suitable for a wide range of applications, from product development and manufacturing to final quality inspection.


Designed for reliable verification of HDMI signaling and HDCP authentication, the MSHG-800PLUS supports testing across various resolutions and video formats, enabling effective evaluation of product compatibility and stability.


With its intuitive user interface and outstanding signal processing performance, the system provides easy operation and dependable performance, even in long-duration continuous testing environments.


The MSHG-800PLUS is widely used in research and development (R&D), manufacturing lines, quality control (QC), and testing and certification laboratories for TVs, monitors, projectors, set-top boxes, AV receivers, digital signage, and a wide variety of HDMI-enabled products.




Product Features


  • 1 Port supporting HDMI 1.4 (HDCP 1.4) & MHL 2.0
  • 4 Ports supporting HDMI 2.0 (HDCP 2.2)
  • Supports 1-Channel ARC (L/R) testing with selectable channels (CH1–CH4) via the front panel button
  • Supports RS-232C remote control
  • Front panel LED indicators display the operating status of each port
  • Front panel LOCK function prevents unintended key operation (press and hold for 2 seconds)
  • Convenient firmware updates via USB memory stick


Specification

SPECIFICATIONS
HDMI& MHL Video Output Compliant HDMI Ver. 2.0 & 1.4 (CEC Support)
Pixel Rate Range HDMI 2.0 & HDCP 2.2 / 4Port : 25Mhz ~ 600Mhz
HDMI 1.4 & MHL 2.0 / 1Port
->HDMI 1.4 & HDCP 1.4 / 1Port : 25Mhz ~ 300Mhz
->MHL 2.0 & HDCP 1.4 / 1Port : 25Mhz ~ 165Mhz
HDMI Timing CEA-861F
HDCP HDCP Ver. 2.2 & 1.4
Color Forma RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:4:2, YCbCr 4:2:0
Bits Per Component Deep Color 8bit, 10bit, 12bit (excluding HDMI 2.0)
Color Space RGB, ITU-R BT.601, ITU-R BT.709, xvYCC
MHL Select MHL 2.0
ARC Select ARC(Audio Return Channel) Support
HDMI Audio Output Number of Channel 7.1 Channel
Sample Rate 32 / 44.1 / 48 / 88.2 / 96 / 176.4 / 192KHz
Waveform Sine Wave
Frequency Range 20Hz ~ 20KHz
Frequency Resolution 5Hz / Step
Level Range 0mV to 2.0V / 100mV step
Special Control Mode Fix, Sweep, Swap, Mute, Audio Return Channel(Stereo L,R)
Data Storage Timing User Timing 1~500, Default Timing 501~9
Pattern User Timing 1~500, Default Timing 501~999 (BMP not supported)
General Specification Power Consumption AC 100~240VAC, 50/60Hz Auto Switch
Operating Conditions * Temperature : 0~40℃
* Up to 80% Humidity, Non-condensing
Dimensions(WxDxH) 425 x 276 x 65 (mm) *Including Stand
Weight 4.12Kg
Specifications and design are subject to change without prior notice.
