MSPG-5800
MSPG-5800 이미지 1

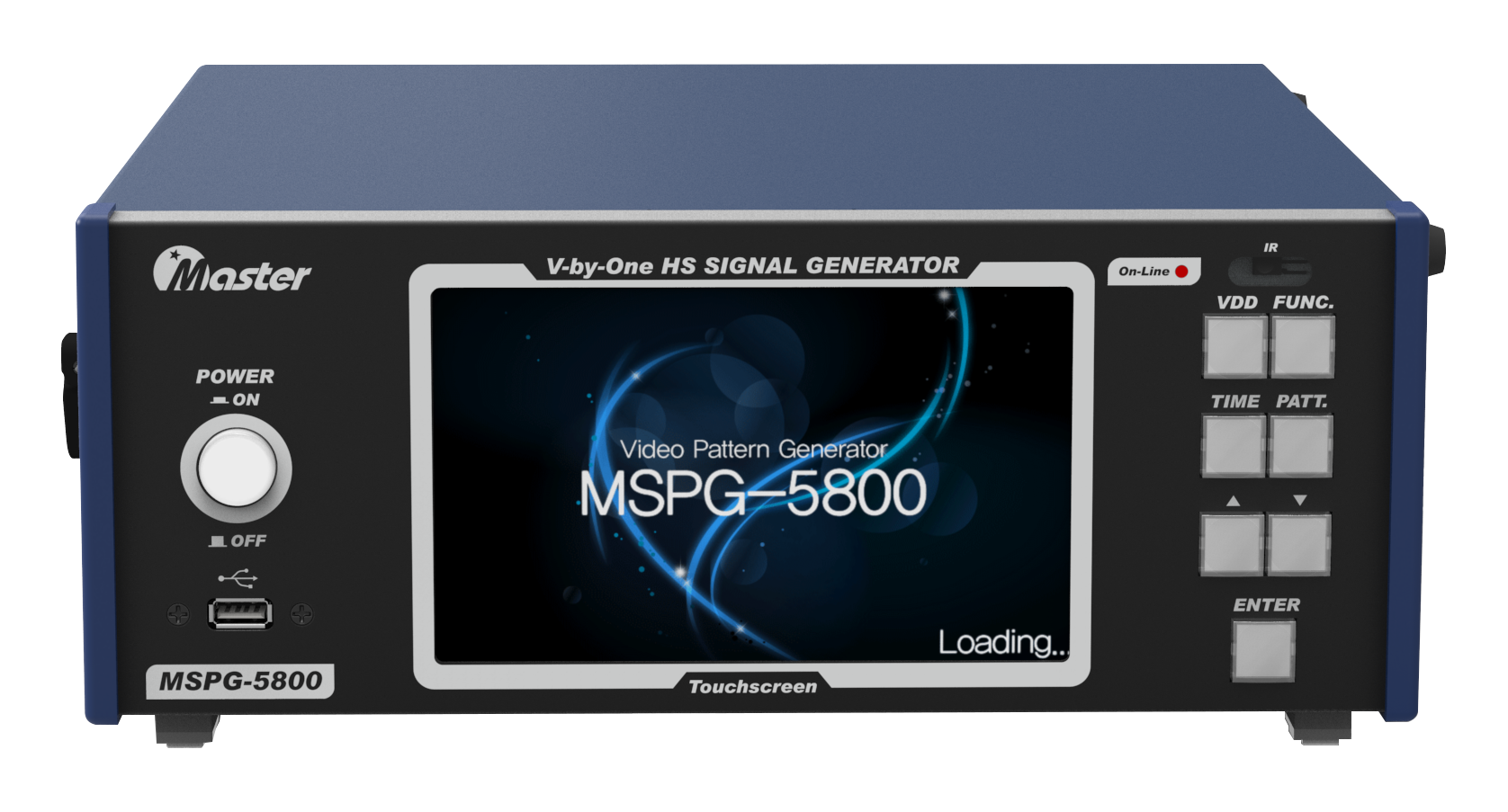

MSPG-5800 이미지 2

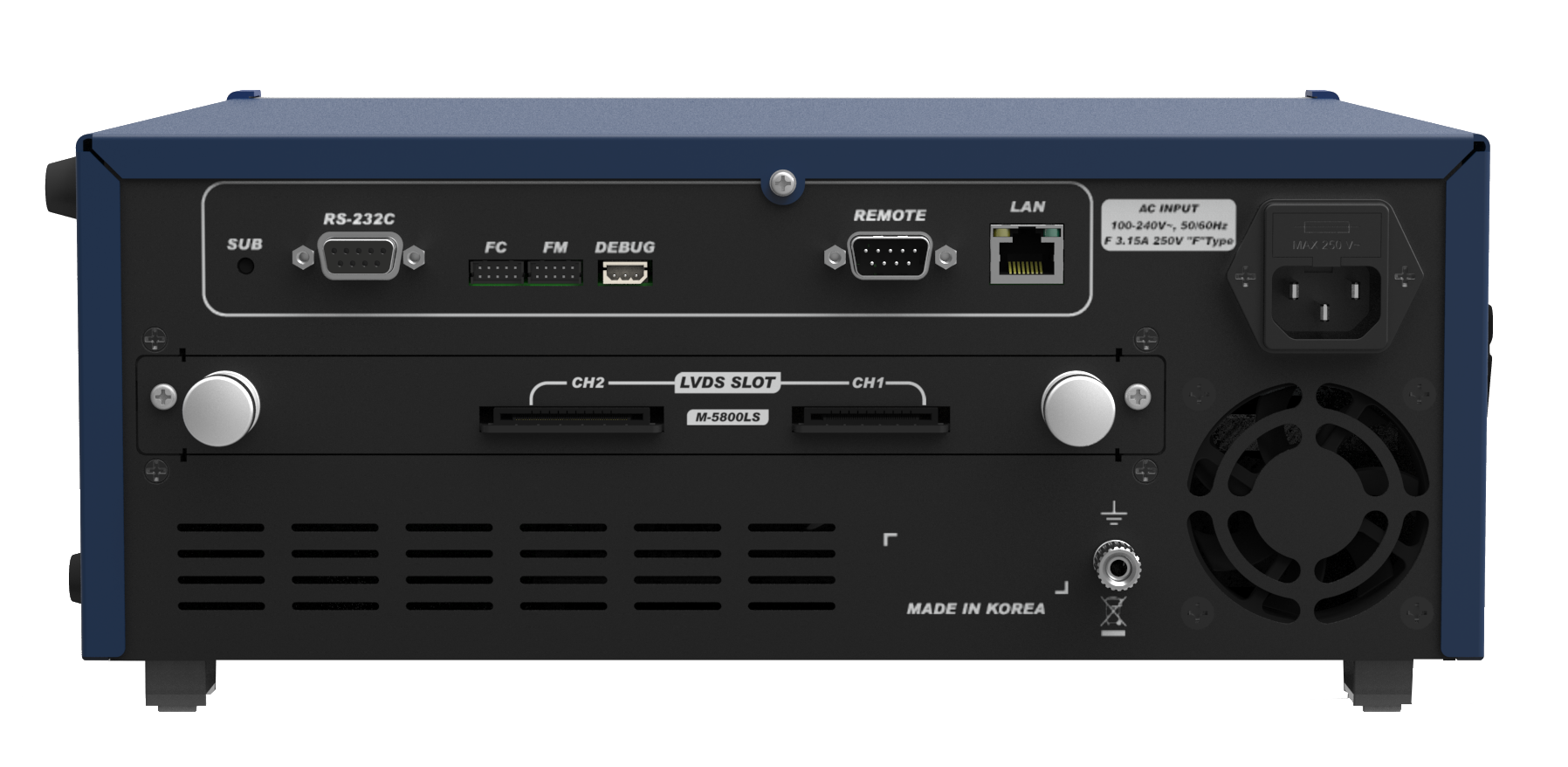

MSPG-5800 이미지 3

Overview

The MSPG-5800 is a high-performance panel signal generator designed for the development, production, and quality verification of LCD, OLED, and industrial display panels. Supporting the latest display interfaces, it enables accurate performance evaluation of a wide range of panels, serving as a professional test instrument used across R&D, production lines, and quality control (QC).


The MSPG-5800 supports a maximum dot frequency of 1.2GHz and, through its V-by-One HS (Vx1) 16-lane high-speed interface, reliably outputs ultra-high-resolution UHD (3840x2160) video signals at 60Hz and 120Hz. This allows precise verification of the performance and reliability of the latest UHD display panels, providing stable testing even in high-speed data transmission environments.


It also supports the LVDS (Low Voltage Differential Signaling) interface, enabling screen inspection of HD and Full HD panels, with support for up to Full HD (1920x1080) at 120Hz. With both V-by-One HS and LVDS interfaces available in a single unit, it can flexibly adapt to the development and production environments of various display panels.


The MSPG-5800 adopts a modular slot-type structure, allowing V-by-One HS slots and LVDS slots to be easily swapped depending on the intended use. This enhances the equipment's versatility and scalability, and is designed to efficiently adapt to evolving display interface environments.




Product Features


  • Slot-type structure allows swapping between LVDS and V-by-One slots for inspection
  • Easy operation via LCD touch panel
  • IR remote control support
  • Supports loading a variety of patterns and timings
  • Displays X, Y coordinates of defective dots or lines using a USB mouse
  • Easy program upgrade, option data copy, and backup via USB memory
  • Supports Character, Color, and OSD patterns, with moving function in up, down, left, right, and diagonal directions
  • Easy up/down adjustment of dot clock, H-frequency, and V-frequency for convenient output inspection
  • Automatic brightness up/down adjustment function
  • Safe mode boot: enables booting in safe mode in case normal mode boot fails
  • Password function: prevents unauthorized changes to signal generator option settings configured by the main user (password changeable)



Slot Types

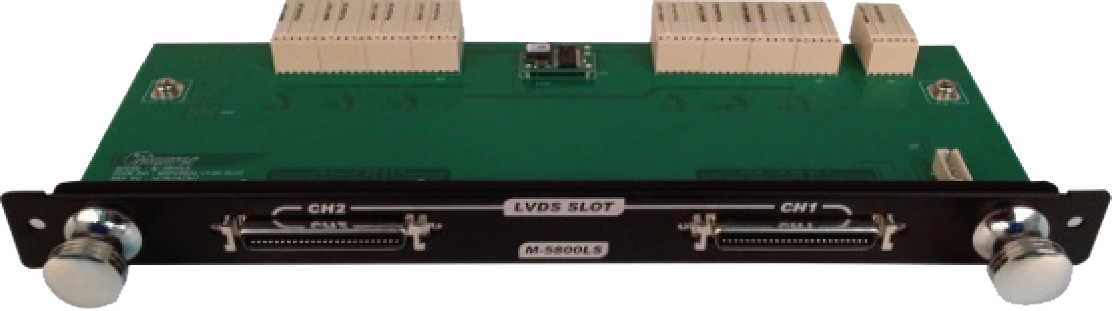

LVDS Slot Board

v by one.png

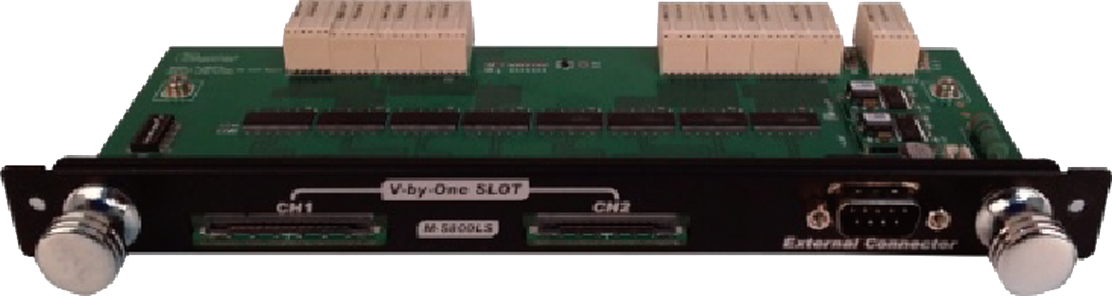

V by one Slot Board

Specification

SPECIFICATIONS
V-by-One Output Resolution Supports up to 1.2GHz dot frequency, including 3840x2160 @60Hz & 120Hz
Interface Supports up to 16-lane bandwidth via V-by-One interface
Bit rate Supports 8bit/10bit
Pixel Data Mode 1, 2, 4, 8 Division
Dot CLK Adjustable from 50 to 85MHz in 0.01MHz increments
FI_RE_51HL Type, 2-Channel Slot-Type Configuration
LVDS Output Resolution Supports up to 500MHz dot frequency, including 1366x768@60Hz, 1920x1080@60Hz, and 1920x1080@120Hz
Interface LVDS Interface
Bit rate switchable between 6-bit/8-bit/10-bit
Supports Single Mode (25MHz ~ 100MHz)
Supports Dual Mode (50MHz ~ 200MHz)
Supports Quad Mode (100MHz ~ 500MHz)
3M (50-pin), 2-Channel Slot-Type Configuration
Switchable between VESA Format, JEIDA Format, and Non-JEIDA Format
IR Remote Control Allows calling and changing VDD On/Off, timing & pattern, function group, scan group, and more using a standard TV remote control
Data Storage Supports up to 999 Patterns (User: 1–500, Default: 501–999)
Supports up to 999 Timings (User : 1~500, Default : 501~999)
Power AC 100~240V, 50/60Hz
Operating Environment Temperature : 0°C ~ 40°C
Humidity : 80% RH or less (Non-Condensing)
Dimensions (WxDxH) 330x320x140 (mm)
Weight 5.6Kg
Specifications and design are subject to change without prior notice.
