The IMX-16000S is a high-performance integrated matrix router that efficiently consolidates and manages a wide range of digital video and audio signals — including DVI, HDMI, SDI, Fiber Optics, and audio — within a single system.

Designed to freely switch and distribute multiple types of input signals to the desired output devices, it provides an optimal solution for operating complex AV systems in a more stable and organized manner.

By simultaneously supporting a wide range of video interfaces and audio signals, it allows equipment of different standards to be integrated into a single unified system, minimizing the need for separate signal processing devices and improving both system efficiency and ease of maintenance. It also applies high-performance signal processing technology to minimize degradation of video and audio quality, delivering stable signal transmission and outstanding reliability even during extended, continuous operation.

The IMX-16000S can be used across a wide range of professional video environments, including broadcasting stations, performance venues, churches, conference rooms, control rooms, control centers, exhibition halls, educational facilities, and large-scale AV systems, and is well-suited for environments that require real-time management of numerous video and audio signals. Users can flexibly control multiple inputs and outputs from a single matrix system, greatly improving operational efficiency. The system can also be flexibly configured according to system scale and operating environment, and its high compatibility with a wide range of external equipment allows seamless integration with existing AV infrastructure.

Combining integrated signal management, stable switching performance, and outstanding scalability, the IMX-16000S is a professional matrix router that delivers an optimal solution for a wide range of industrial and broadcast environments requiring high-quality video and audio transmission.

Product Features

• Integrated, expandable Modular Matrix scalable from 4x4 up to 160x160
• HDCP compliant (HDMI, DVI)
• Slot-based matrix structure enabling flexible system design
• RS-232C, LAN (TCP/IP, UDP)
• Video wall zoom in/out function
• Text display support (OSD function)
• Audio embedding and de-embedding
• Test pattern support
• FREEZE support
• Hot-swap support [replace slot boards without powering off the system during use]
• Seamless switching with no flicker during screen transitions
• KC certified

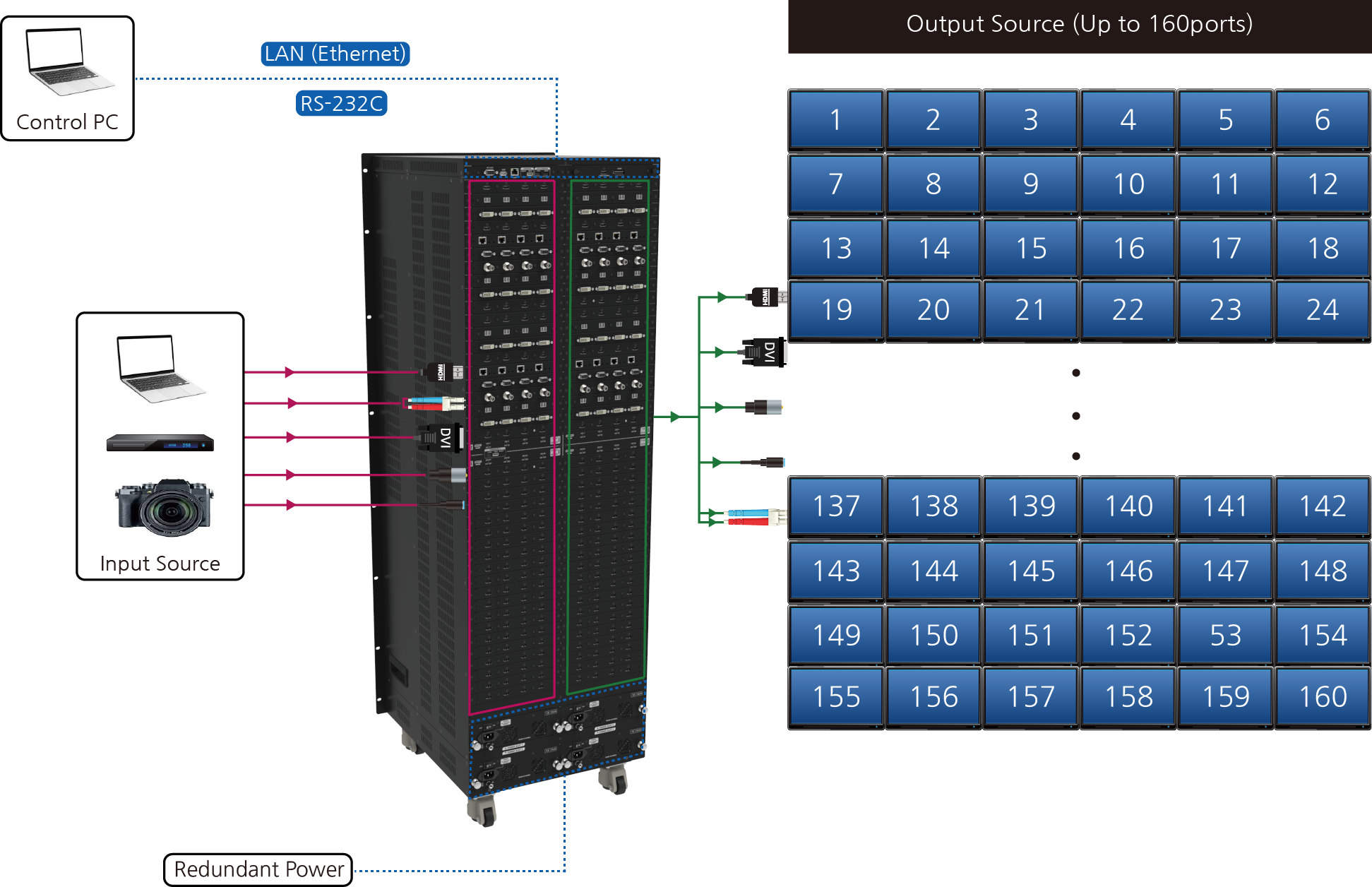

System Diagram

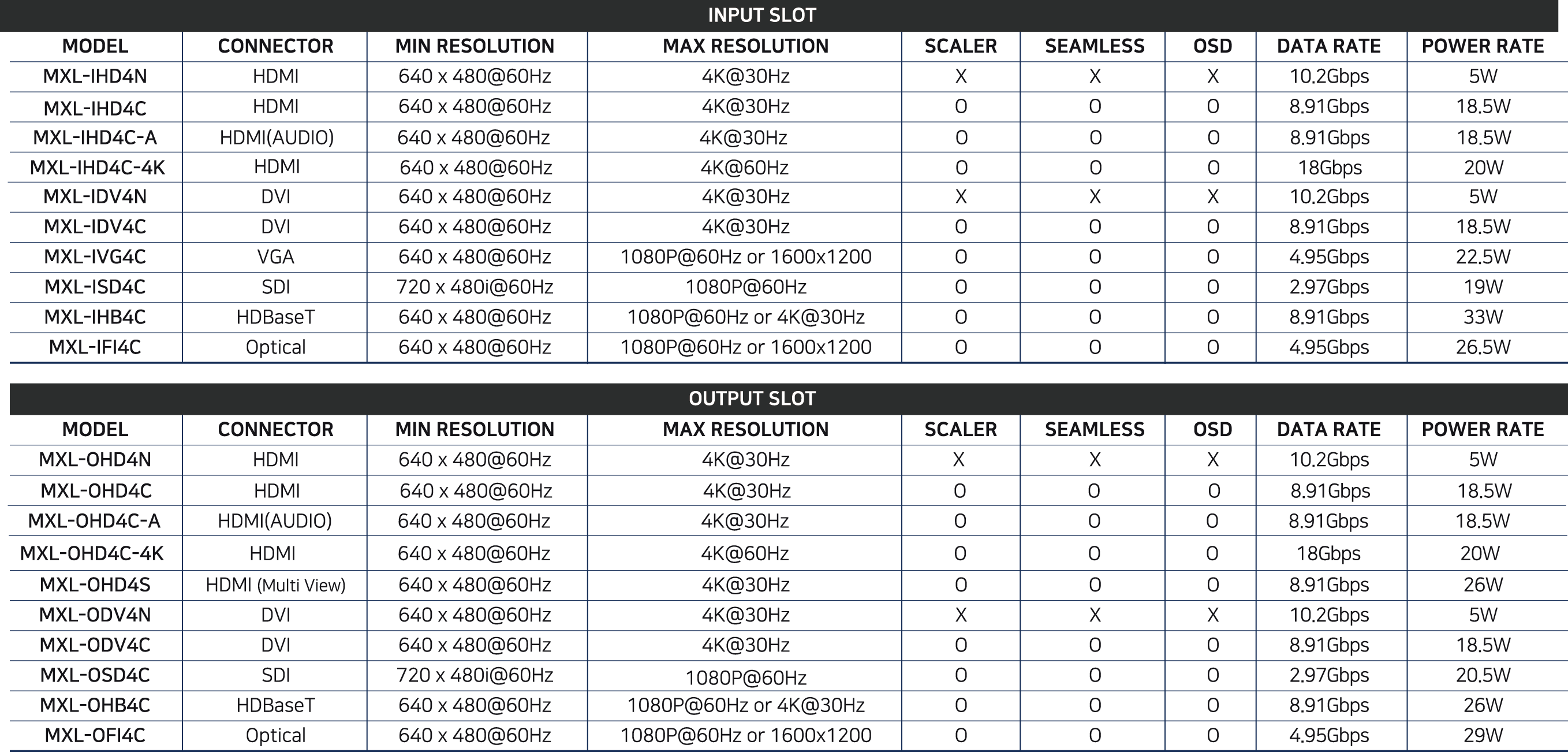

Slot Types
