MSPG-8100S
MSPG-8100S 이미지 1

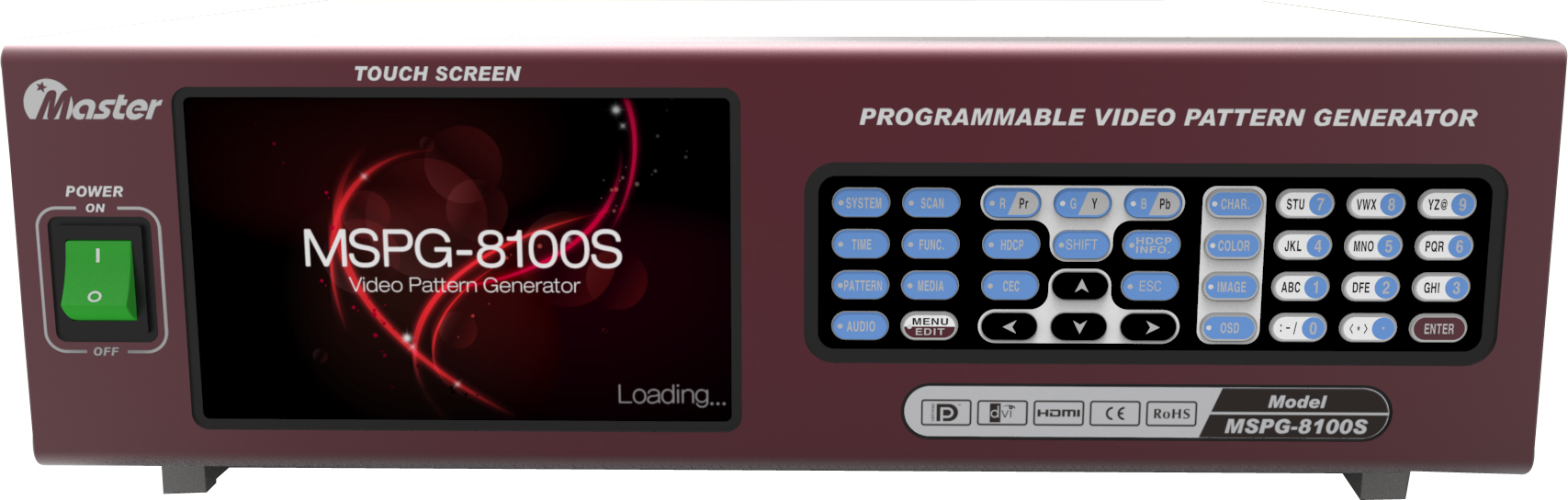

MSPG-8100S 이미지 2

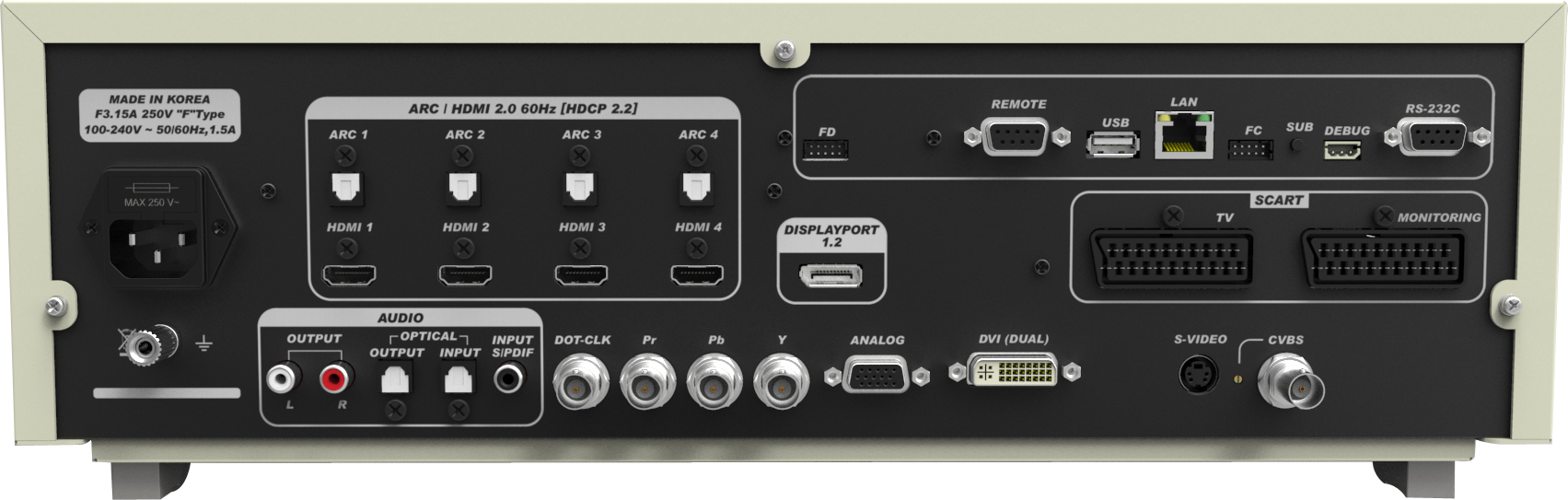

MSPG-8100S 이미지 3

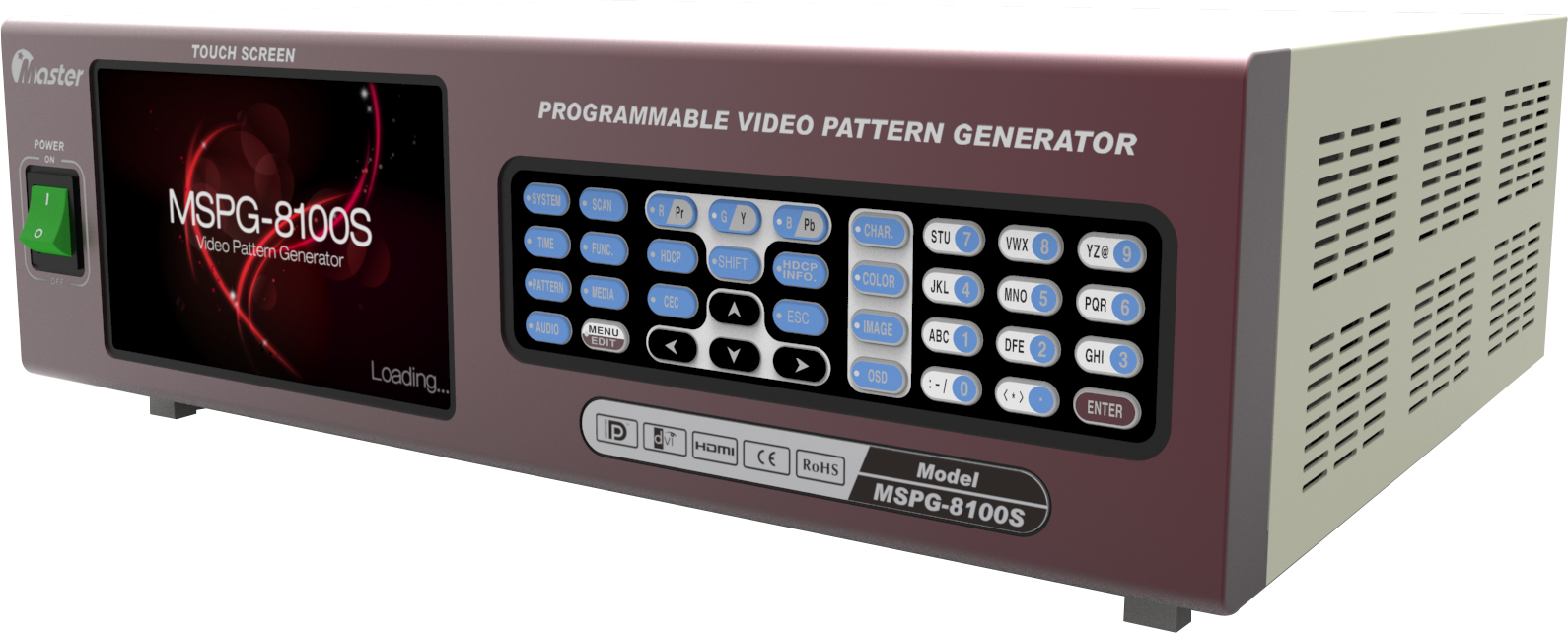

MSPG-8100S 이미지 4

Overview

The MSPG-8100S is designed to meet the rapidly evolving demands of the display and video markets, supporting resolutions of up to 4Kx2K (UHD) (594MHz)@60Hz for sharp and stable high-definition video.

To maximize user convenience, it features a touch screen display on the front panel for easy setup, allowing various edits to be adjusted with greater precision.


The unit supports 4 HDMI 2.0 output ports and 1 DisplayPort 1.2 output port (along with various other outputs), reliably processing sharp, high-quality 4K UHD video signals of up to 4096x2160@60Hz (594MHz). Both HDCP 1.4 and 2.2 are supported across the HDMI and DisplayPort interfaces, enabling stable video transmission across various content protection environments, while support for Deep Color and xvYCC delivers richer, more natural color reproduction.


The HDMI CEC function allows efficient control of connected devices, and support for various HDMI 3D video formats, including Side by Side (Half/Full) and Frame Packing, enables immersive, high-quality 3D video. It also supports various TV-related functions such as Teletext, V-Chip, and Closed Caption, allowing it to adapt to a wide range of video environments. In addition, it supports simple firmware updates via USB memory, allowing the system to be quickly and easily kept up to date without additional complex equipment.



Combining outstanding video processing technology, stable system operation, and a user-centered interface, the MSPG-8100S delivers a reliable solution for building 4K UHD video systems.



Product Features


  • Supports 4 HDMI 2.0 output ports [up to 4096x2160@60Hz (594MHz)]
  • Supports 1 DisplayPort 1.2 output port [up to 4096x2160@60Hz (594MHz)]
  • Supports HDCP 1.4 / HDCP 2.2
  • Front-panel touch screen
  • HDMI CEC function and support for Deep Color / xvYCC
  • Supports HDMI 3D video [Side by Side (Half/Full), Frame Packing, etc.]
  • Supports various TV functions [Teletext, V-Chip, Closed Caption, etc.]
  • Easy firmware update via USB memory

Specification

SPECIFICATIONS
Analog Output Display Size 2560 X 1600
Pixel Clock 8~300MHz
Video Level R, G, B (Load 75 ohms, 0~1.0V Programmable)
Output Connector 15P D-Sub
Separate Sync HS, VS(3.0V~5.5Vp-p Programmable)
Inherited Sync Level is 4.8Vp-p
DisplayPort Pixel clock 25 ~ 594Mhz
Resolution Max 3840(4096) x 2160 @ 60hz 1Port
Timing Format VESA Displayport Standard Ver 1.2a
Output format RGB4:4:4(8/10Bit), YCbCr4:4:4(8/10Bit), YCbCr4:2:2(8/10Bit)
*4K/60Hz(4:4:4_8bit only)
Link rate Max. HBR2
Compliant DisplayPort 1.2a Version
HDCP Support HDCP 1.4 & 2.2
Audio I2S, 48KHz, 2Channels
H/V Frequency Horizontal 10~300KHz / 1 Dot Resolution
Vertical 10~300Hz / 1 Line Resolution
DVI Output Pixel Clock * Dual Link: 25~330MHz
Transfer Type * Single TMDS 24 Bit Input Mode / * Dual TMDS 12 Bit Input Mode
HDCP Support Single & Dual
Compliant DVI 1.0 Support
Video Signal Type RGB
Output Connector DVI-D (DVI 1Ports, Single/Dual)
EDID Read
CVBS Output Output Mode * NTSC M,J (3.58MHz)
* NTSC443 (4.4MHz)
* PAL B,D,G,H,I (4.434MHz)
* SECAM (For=4.406MHz / For=4.25MHz)
Subcarrier Stability 25ppm (±25Hz / 1MHz)
Video Output Composite(BNC), S-Video
* Signal : CVBS (Connector : BNC)
* Signal : Y/C (Connector : 4Pin-Mini Din)
Closed Caption (NTSC) C1, C2, C3, C4 / T1, T2, T3,T4
V-Chip *MPAA Rating : G, PG, PG-13, R, NC-17, X
* FCC Rating : TV-Y, TV-Y7, TV-G, TV-PG, TV-14, TV-MA
Teletext (PAL) Teletext System B Level 1, 1.5
D-TV Output Signal Y, Pb, Pr
Connector BNC
Time 480i/p, 576i/p, 720p, 1080i/p for ATSC and DVB Format
HDMI (TMDS) Video Output Compliant HDMI 2.0a Version
Pixel Rate Range 4K x 2K@60Hz(Dot Clock: 594MHz) 4Port
Timing Format EIA/CEA-861F, VESA Standard
Video Signal Type RGB, YCbCr
Pixel Encoding & Data bit of RGB & YCbCr *4K@30Hz_RGB4:4:4(8/10/12bit), YCbCr4:4:4(8/10/12bit), YCbCr4:2:2(8/10/12bit)
*4K@60Hz_RGB4:4:4(8bit only), YCbCr4:4:4(8bit only), YCbCr4:2:2(8/10bit), YCbCr4:2:0(8bit only)
Color Space RGB, BT.601, BT.709, BT.2020, xvYCC-601, xvYCC-709
HDCP Support HDCP 1.4 & 2.2 Version
EDID Read
Output Connector Type A, HDMI 4 Port
Note Audio Return Channel (ARC) 4Port, CEC Support
3D Video Formats, HDR(HDR10, HLG)
HDMI Audio Output Sample Rate 32 / 44.1 / 48 / 88.2 / 96 / 176.4 / 192KHz
Number of Channel 8 Channels
Bit per Sample 24
Waveform Sine Wave
Frequency Range 20Hz to 24KHz / 5Hz step
Level Range 0dB to -110dB/ 0.5dB step
External Audio Input Optical, Coaxial
Special Control Mode Fix, Sweep, Swap, Optical, Mute
Audio (Analog) Output Frequency Range 20Hz to 24KHz / 5Hz step
Level Range 0mVrms to 900mVrms / 5mVrms, 0~18dB
Waveform Sine Wave
Number of Channel 2 Channels
Connector RCA
Special Control Mode Fix, Sweep, Swap, Mute
SCART Output Signal Mode RF Input Mode, CVBS Mode, RGB Mode, Y/C Mode
Connector SCART 21Pin
Standard Output Standard Output range 18.0dB (400mVrms)
Scan & Function Group Scan Storage 99 Group (1 Group; 20 Step)
Function Storage 99 Group (1 Group; 30 Step)
Data Storage Device Timing 999 Timing (User: 1~500, Default: 501~999)
Pattern 999 Pattern (User: 1~500, Default: 501~999)
General Specification Power Consumption AC 100~240V, 50/60Hz Auto Switch
Operating Conditions * Temperature : 0~40℃
* Up to 80% Humidity, Non-condensing
Dimension (WXDXH) 440 x 350 x 145 (mm)
Weight 6Kg
Others User Interface * Front Panel (6.4 inch / Graphic LCD) Key Pad
* Possible to Timing Parameter Edit
* USB Firmware update, RS-232C control
Specifications and design are subject to change without prior notice.
