MSPG-3235
MSPG-3235 이미지 1

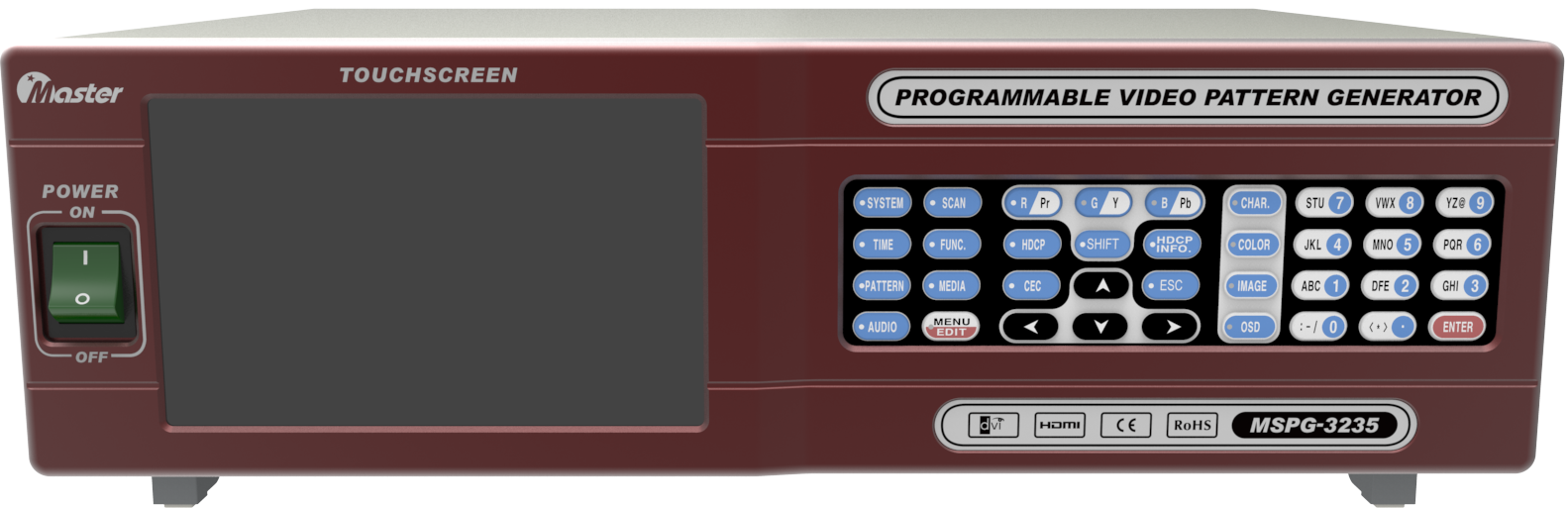

MSPG-3235 이미지 2

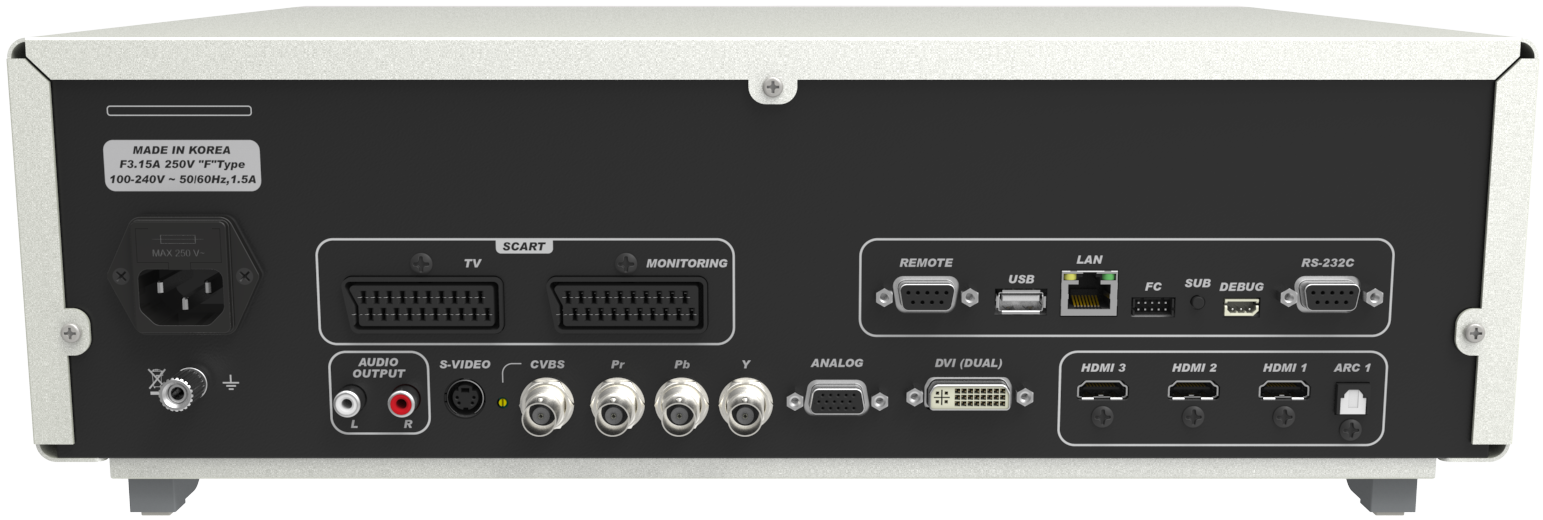

MSPG-3235 이미지 3

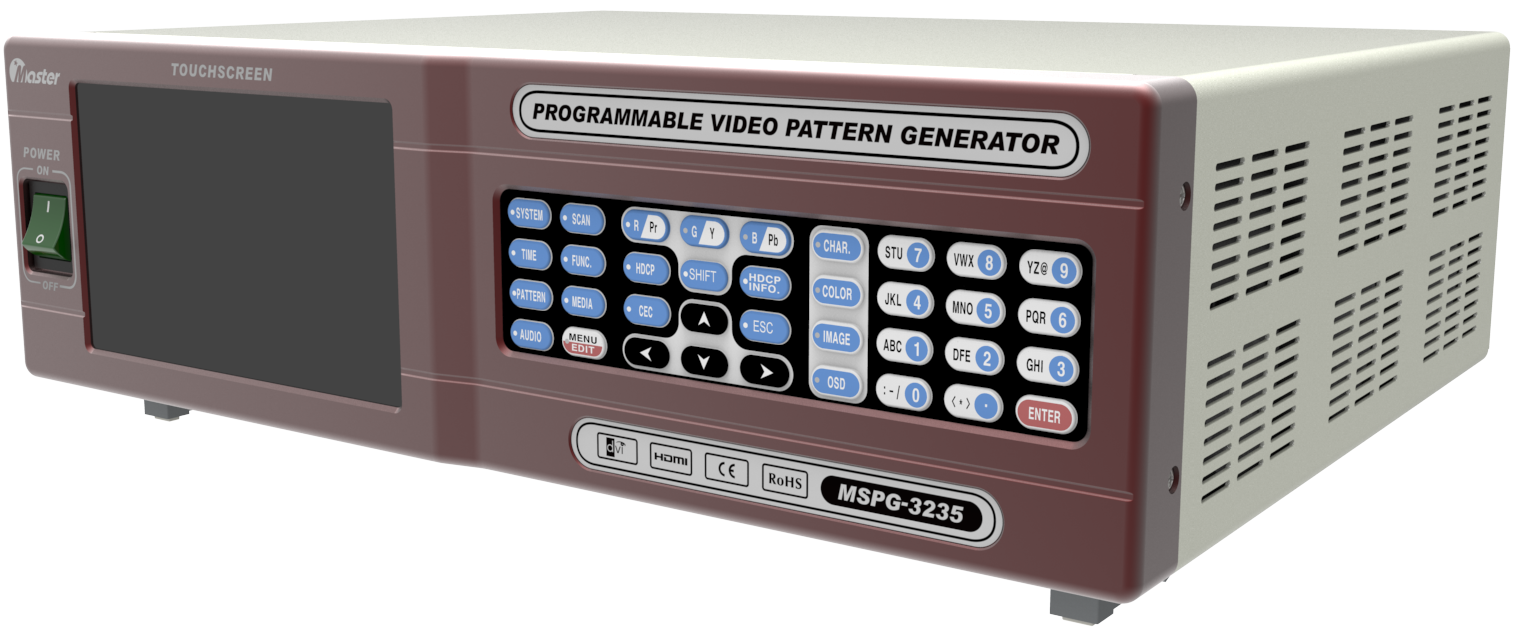

MSPG-3235 이미지 4

Overview

The MSPG-3235 is a high-performance video signal generation processor developed to meet the rapidly evolving demands of the display and video markets, supporting resolutions of up to 4096x2160@30Hz (297MHz) for sharp and stable high-definition video processing.

To maximize user convenience, it features a touch screen display on the front panel for easy setup, allowing various edits to be adjusted with greater precision. It also delivers stable video processing performance based on high compatibility with a wide range of video input signals.


The unit supports 3 HDMI 1.4 input ports and 1 HDMI ARC port, reliably processing high-quality 4K UHD video signals of up to 4096x2160@30Hz (297MHz). Its HDMI ARC (Audio Return Channel) function enables efficient audio signal transmission, while HDCP 1.4 support ensures stable playback of copyright-protected content and high compatibility with a wide range of digital video equipment. Support for Deep Color and xvYCC delivers richer, more natural colors, and the HDMI CEC function allows efficient control of connected devices.


The MSPG-3235 supports various HDMI 3D video formats, including Side by Side (Half/Full) and Frame Packing, delivering immersive 3D video, and supports a range of TV-related functions such as Teletext, V-Chip, and Closed Caption, allowing flexible adaptation to a wide range of digital broadcasting environments. It also supports simple firmware updates via USB memory, enabling convenient maintenance and keeping the system up to date without complex procedures.



Combining outstanding video processing technology, stable system operation, and a user-centered interface, the MSPG-3235 delivers a reliable solution for building 4K UHD video systems.



Product Features


  • Supports 3 HDMI 1.4 input ports and 1 HDMI ARC port [up to 4096x2160@30Hz (297MHz)]
  • Supports HDCP 1.4
  • Front-panel touch screen
  • HDMI CEC function and support for Deep Color / xvYCC
  • Supports HDMI 3D video [Side by Side (Half/Full), Frame Packing, etc.]
  • Supports various TV functions [Teletext, V-Chip, Closed Caption, etc.]
  • Easy firmware update via USB memory

Specification

SPECIFICATIONS
Analog Output Display Size 4096 x 4096
Pixel Clock 8~250MHz
Video Level R, G, B (Load 75 ohms, 0~1.0V Programmable)
Output Connector 15P D-Sub
Separate Sync HS, VS(3.0V~5.5Vp-p Programmable)
Inherited Sync Level is 4.8Vp-p
DisplayPort Pixel clock 25 ~ 300Mhz
Resolution 3840*2160
Timing Format 1.1a
Output format RGB4:4:4, YCbCr4:4:4(8/10 bit), YCbCr4:2:2(8/10/12 bit)
Link rate 2.7G, 1.62G
Compliant Displayport 1.2a Version
HDCP Support HDCP 1.4 & 2.2
Audio 192Khz, spdif
DVI Output Pixel Clock * Dual Link: 25~330MHz
HDCP Support Single & Dual
Compliant DVI 1.0 Support
Video Signal Type RGB
Output Connector DVI-D (DVI 1Ports, Single/Dual)
HDMI Video Output Connector HDMI 1.4Version
Pixel Rate Range 25~165MHz (TMDS Clock : 25~225MHz)
4Kx2K@30Hz (Dot Clock : 300MHz)
Standard Spec EIA/CEA-861F
Video Signal Type RGB, YCbCr
Pixel Encoding & Data bit of RGB & YCbCr 4K@30Hz_RGB4:4:4(8bit),YCbCr4:4:4(8bit), YCbCr4:2:2(8/10/12 bit)
Color Space RGB, BT.601, BT.709, BT.2020, xvYCC-601, xvYCC-709
HDCP Support HDCP 1.4
Output Connector Type A, HDMI 3 Port (ARC 1Port, 4K x 2K @30Hz 3Port)
Note *Audio Return Channel (ARC) 1Port, CEC Support
*3D Video Formats (Frame Packing, Side by Side, Top & Bottom, Field Alternative)
Audio (Digital) Output Sample Rate 32 / 44.1 / 48 / 88.2 / 96 / 176.4 / 192KHz
Number of Channel 8 Channels
Bit per Sample 24
Waveform Sine Wave
Frequency Range 20Hz to 24KHz / 5Hz step
Level Range 0dB to -110dB/ 0.5dB step
External Audio Input Optical, Coaxial
Special Control Mode Fix, Sweep, Swap, Optical, Mute
Audio (Analog) Output Frequency Range 20Hz to 24KHz / 5Hz step
Level Range 0mVrms to 900mVrms / 5mVrms, 0~18dB
Waveform Sine Wave
Number of Channel 2 Channels
Connector RCA
Special Control Mode Fix, Sweep, Swap, Mute
Scan & Function Group Scan Storage 99 Group (1 Group; 24 Step)
Function Storage 99 Group (1 Group; 32 Step)
Data Storage Device Timing 999 Timing (User: 1~500, Default: 501~999)
Pattern 999 Pattern (User: 1~500, Default: 501~999)
General Specification Power Consumption AC 100~240V, 50/60Hz Auto Switch
Operating Conditions * Temperature : 0~40℃
* Up to 60% Humidity, Non-condensing
Dimensions (WXDXH) 440 X 350 X 145 (mm)
Weight 6Kg
Others User Interface * Front Panel (6.4 inch / Graphic LCD) Key Pad
* Possible to Timing Parameter Edit
* USB Firmware update, RS-232C control
Max Image 2048 x 2048 (Max 165MHz), 50pcs
Specifications and design are subject to change without prior notice.
