MSPG-5000
MSPG-5000 이미지 1

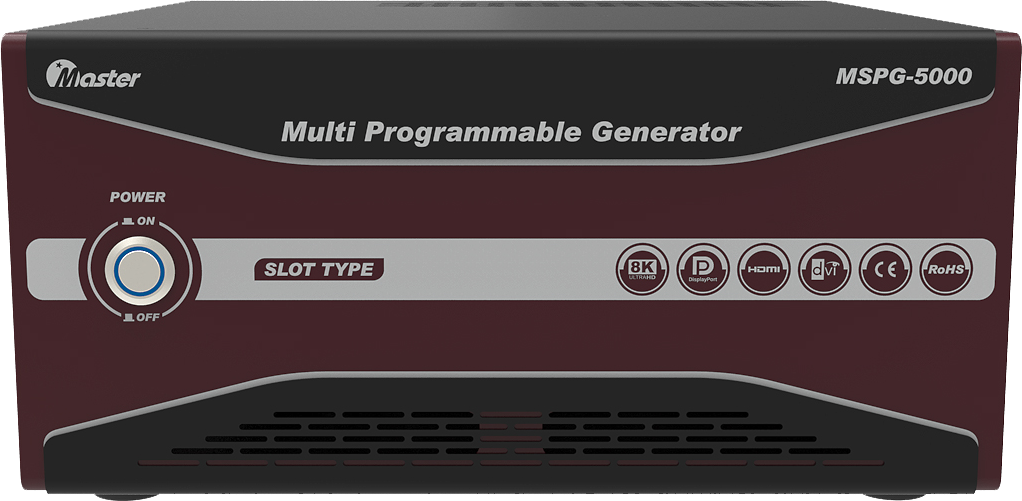

MSPG-5000 이미지 2

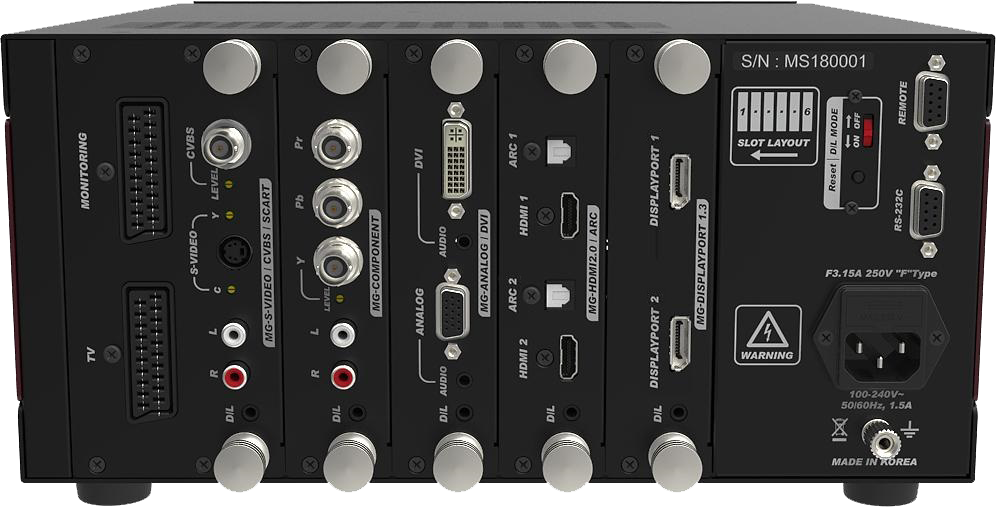

MSPG-5000 이미지 3

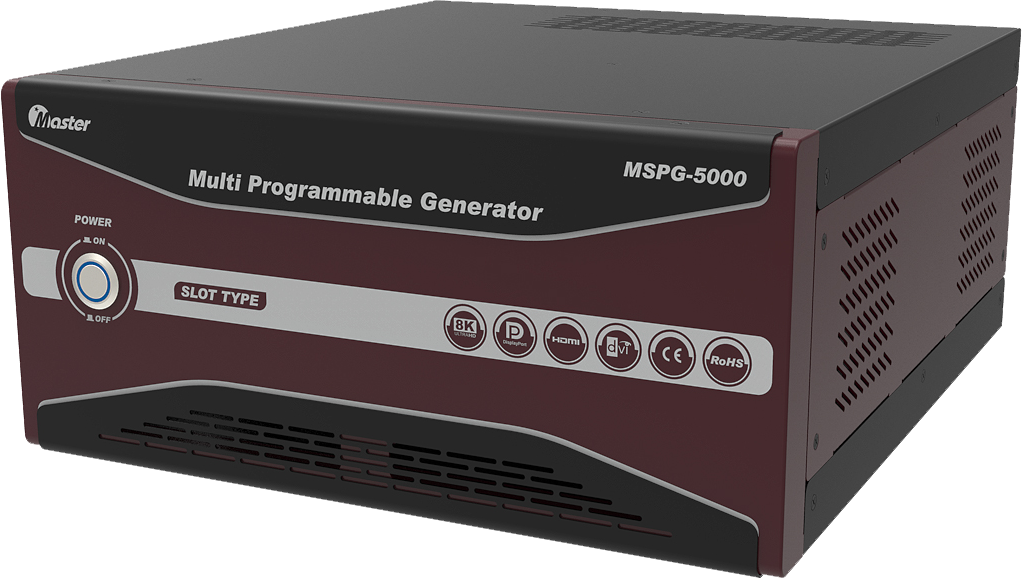

MSPG-5000 이미지 4

Overview

The MSPG-5000 is a high-performance, multi-standard video signal generator that reliably produces various video signals required for the development, production, and quality verification of display products.

Supporting a wide range of video interfaces, including HDMI, DisplayPort, DVI, Analog, Component, S-Video, and CVBS, it enables multiple signal environments to be reproduced with a single unit, allowing efficient performance evaluation and functional verification of various display devices.


It serves as a key test instrument in the R&D, production, and quality control processes for a wide range of video output devices, including LCD and LED TVs, industrial displays, monitors, and projectors, providing a reliable test environment through accurate and stable signal output performance.

Supporting a wide range of resolutions and video formats, it can be broadly applied from the product development stage through mass production and final inspection, significantly improving both development and production efficiency.


The MSPG-5000's key feature is its modular slot structure, which allows the system to be flexibly configured according to the user's environment. With up to 6 signal output slots available, users can freely combine the interfaces they need, and the system's ease of expansion and maintenance allows it to effectively adapt to evolving development and production environments.


In addition, its robust hardware design and stable signal processing technology deliver outstanding reliability and consistent performance even during extended, continuous operation, while its user interface enables easy and convenient equipment operation.


The MSPG-5000 is a professional video signal generator widely used across various industries, including display manufacturers, research institutes, testing and certification organizations, production lines, and quality control departments, providing an optimal solution that meets a wide range of customer testing needs through accurate signal generation and outstanding scalability.



Product Features


  • All ports support independent output
  • Various test patterns and timings (editable)
  • Slot-based signal generator (up to 6 slots)
  • Easy update and backup via USB
  • Supports EDID test patterns and HDCP test patterns
  • Supports eARC/ARC/CEC
  • Supports HDR10 and HLG test timings



Slot Types

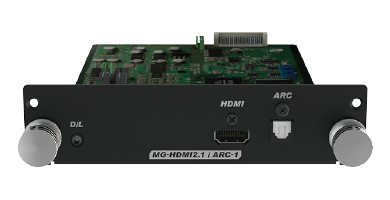

Model: MG-HDMI2.1/ARC-1

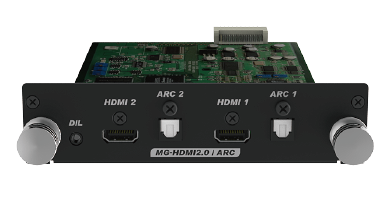

Model: MG-HDMI2.0/ARC

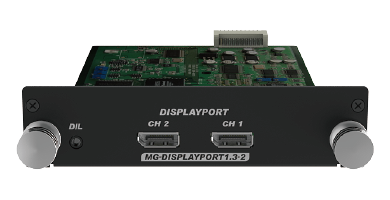

Model: MG-DISPLAYPORT1.3-2

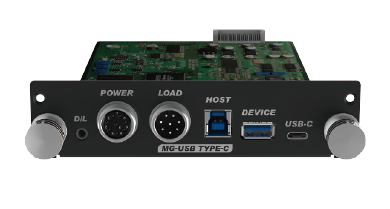

usb type-c.png

Model: MG-USB TYPE-C

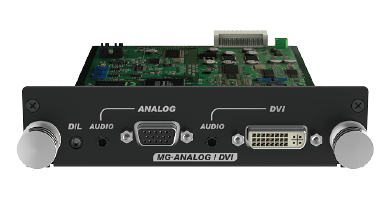

analog dvi.png

Model: MG-ANALOG/DVI

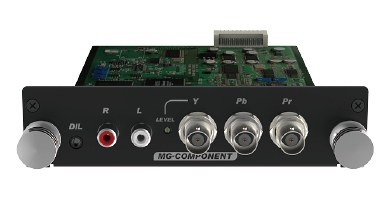

Model: MG-COMPONENT

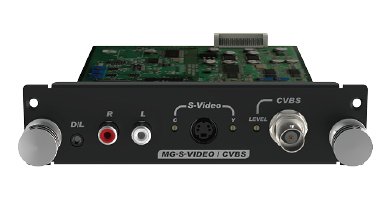

svideo cvbs.pngModel: MG-S-VIDEO/CVBS





Specification

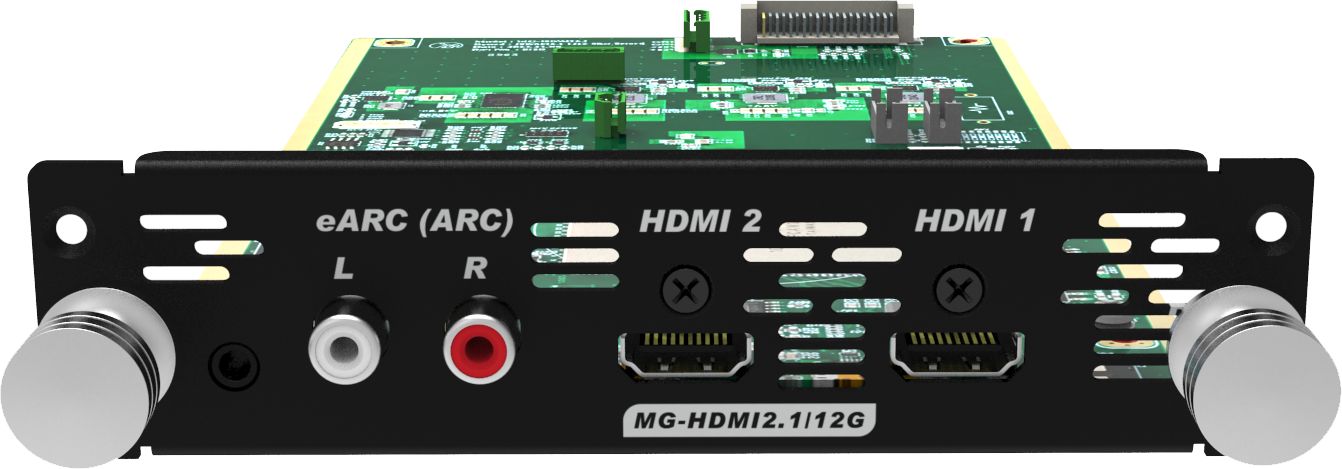

HDMI2.1 - 12G SLOT (Model: MG-HDMI2.1-12G )
Compliant HDMI 2.1 Version
Pixel Rate Range 25MHz~1.48GHz / Up to 8Kx4K@60Hz(YCbCr4:2:0)
Signal Type TMDS, Fixed Rate Link (FRL - Maximum link : 12Gbps x 4Lane)
Pixel Encoding & Data Bit 8K@30Hz_RGB4:4:4(8/10/12bit), YCbCr4:4:4(8/10/12bit), YCbCr4:2:2(8/10/12bit)
8K@60Hz_YCbCr4:2:0(8/10/12bit)
Color Space RGB, BT-601, BT-709, BT-2020, xvYCC-601, xvYCC-709
HDCP HDCP 1.4 and 2.3 Version (FRL mode HDCP 2.3 Only)
Connector Type A, HDMI 2 Ports, eARC/ARC to analog L/R
Digital Audio L/R (1 Ch support eARC/ARC: Audio Return Channel)
HDMI2.1 SLOT (Model: MG-HDMI2.1/ARC-1)
Compliant HDMI 2.1 Version
Pixel Rate Range 25MHz~1.2GHz / Up to 8Kx4K@60Hz
Signal Type TMDS, Fixed Rate Link (FRL - Maximum link : 10Gbps x 4Lane)
Pixel Encoding & Data bit 8K@30Hz_RGB4:4:4(8/10bit), YCbCr4:4:4(8/10bit), YCbCr4:2:2(8/10bit)
8K@60Hz_YCbCr4:2:0(8/10bit)
Color Space RGB, BT-601, BT-709, BT-2020, xvYCC-601, xvYCC-709
HDCP HDCP 1.4 and 2.3 Version (FRL mode HDCP 2.3 Only)
Connector Type A, HDMI 1 Port
Digital Audio 8Ch Audio
HDMI2.0 SLOT (Model: MG-HDMI2.0/ARC)
Compliant HDMI 2.0 Version
Pixel Rate Range 25MHz~600MHz / Up to 4Kx2K@60Hz (TMDS Clock 600MHz)
Signal Type RGB, YCbCr
Pixel Encoding & Data Bit 4K@30Hz_RGB4:4:4(8/10/12bit), YCbCr4:4:4(8/10/12bit), YCbCr4:2:2(8/10/12bit)
4K@60Hz_RGB4:4:4(8bit only), YCbCr4:4:4(8bit only), YCbCr4:2:2(8/10/12bit)
Color Space RGB, BT-601, BT-709, BT-2020, xvYCC-601, xvYCC-709
HDCP HDCP 1.4 and 2.2 Version
Connector Type A, HDMI 2 Ports, ARC 2 ports
Digital Audio 8Ch Audio (SPDIF Audio Return Channel)
DISPLAYPORT1.3 SLOT (Model: MG-DISPLAYPORT1.3-2)
Compliant DISPLAYPORT 1.3 Version
Pixel Rate Range 8Kx4K@30Hz(7680x4320@30Hz), 5k(5120x2160@60Hz), 4K(3840x2160@120Hz)
/ HBR3
Signal Type RGB, YCbCr
Color Space RGB, BT-601, BT-709
HDCP Support HDCP 1.4 and 2.2 Version
Output Format RGB4:4:4, YCbCr4:4:4(8/10/12bit), YCbCr4:2:2(8/10/12bit)
Digital Audio I2S, 48KHz, 2Channels
Connector DP 2 Ports
USB TYPE-C SLOT (Model: MG-USB TYPE-C)
Compliant DISPLAYPORT 1.3 Version
Pixel Rate Range Up to 4K(3840x2160@60Hz)
Pixel Encoding & Data Bit HBR2(4Lanes)
RGB4:4:4(8/10Bit), YCbCr4:4:4(8/10bit), YCbCr(8/10bit)
4Kx2K@60Hz_RGB4:4:4(8bit only)
Color Space RGB, BT-601, BT-709
HDCP HDCP 1.4 and 2.2 Version
Connector USB TYPE-A (Device)
USB TYPE-B (Host)
USB TYPE-C (Dual Role Port)
Power : External power source connector to MSPW-100W(Optional)
Load: External electric load connector to MSDL-100W(Optional)
Power Delivery Source Up to +25V / 5A(100W) with external power test unit MSPW-100W(optional)
Power Delivery Sink Up to +25V / 5A(100W) with external load test unit MSDL-100W(optional)
Digital Audio I2S, 48KHz, 2Channels
ANALOG/DVI SLOT (Model: MG-ANALOG/DVI)
ANALOG Pixel Rate Range 8~250MHz
Video Signal Type R,G,B (Load 75 ohms, 0~1.0V Programmable)
Output Connector 15P D-Sub
Separate Sync HS, VS(3.0V~5.5Vp-p Programmable) / Inherited Sync Level is 4.8Vp-p
Analog Audio Stereo L, R
Connector ANALOG 1 Port, AUDIO 1 Port
DVI Compliant DVI 1.0 Support
Pixel Rate Range Dual Link : 25~330MHz
Transfer Type *Single TMDS 24Bit Input Mode
*Dual TMDS 12Bit Input Mode
HDCP HDCP 1.3
Video Signal Type RGB
Connector DVI-D (DVI 1Port, Single/Dual), AUDIO 1Port
Analog Audio Stereo L, R
COMPONENT SLOT (Model: MG-COMPONENT)
Output Mode Y, Pb, Pr (480i/p, 576i/p, 720p, 1080i/p, for ATSC and DVB Format)
Output Connector BNC
Analog Audio RCA L, R
Connector YPbPr 1Port, AUDIO R/L 1Port
S-VIDEO / CVBS SLOT (Model: MG-S-VIDEO / CVBS)
Output Mode *NTSC M,J (3.58MHz) / *NTSC443 (4.4MHz)
*PAL B,D,G,H,I (4.434MHz) / * SECAM (For=4.406MHz)
Subcarrier Stability 25ppm (±25Hz / 1MHz)
Video Output Composite (BNC), S-Video
*Signal : CVBS (Connector : BNC)
*Signal : Y/C (Connector : 4Pin-Mini Din)
Note Closed Caption, V-Chip, Teletext
Analog Audio RCA L, R
Connector S-VDIEO 1 Port, CVBS 1 Port, AUDIO L/R 1 Port
Common Specifications
MG-CPU USB Port Master Electronics Co., Ltd. Dedicated Timing & Pattern / Main Program Update Port
DEBUG Port Master Electronics Co., Ltd. Dedicated Debugging Port
SUB SUB Button for Entering Safe Mode
LAN Master Electronics Co., Ltd. Dedicated Update and Debugging Port
CPLD Master Electronics Co., Ltd. Dedicated Update Port
Digital Audio Common Spec. Sample Rate 32 / 44.1 / 48 / 88.2 / 96 / 176.4 / 192 KHz
Number of Channel 8 Channels
Bit per Sample 24
Waveform Sine Wave
Frequency Range 20Hz to 24KHz / 5Hz step
Level Range 0dB to -110dB 0.5dB step
External Audio Input Optical, Coaxial
Special Control Mode Fix, Sweep, Swap, Optical, Mute
Analog Audio Common Spec Frequency Range 20Hz to 24KHz / 5Hz step
Level Range 0mVrms to 900mVrms / 5mVrms, 0~18dB
Waveform Sine Wave
Number of Channel 2 Channels
Connector RCA
Special Control Mode Fix, Sweep, Swap, Optical, Mute
Scan & Function Group Scan Storage 99 Group (1 Group : 24 Step)
Function Storage 99 Group (1 Group : 32 Step)
Time & Pattern Data Timing 999 Timing (User : 1~500, Default : 501~999)
Pattern 999 Pattern (User : 1~500, Default : 501~999)
Others User Interface *Remote controller (Model: MSRC-009L)
*Possible to Timing Parameter Edit
*USB, RS-232C
General Spec Power AC 100~240V, 50/60Hz Auto Switch
Operating Environment Temperature: 0~40℃
Humidity: Up to 80% RH (Non-Condensing)
Dimensions (WxDxH) 319x350x150 (162) mm
Weight 4Kg / Slot 1EA : 0.3Kg / Cover Slot : 0.2Kg
Specifications and design are subject to change without prior notice.
