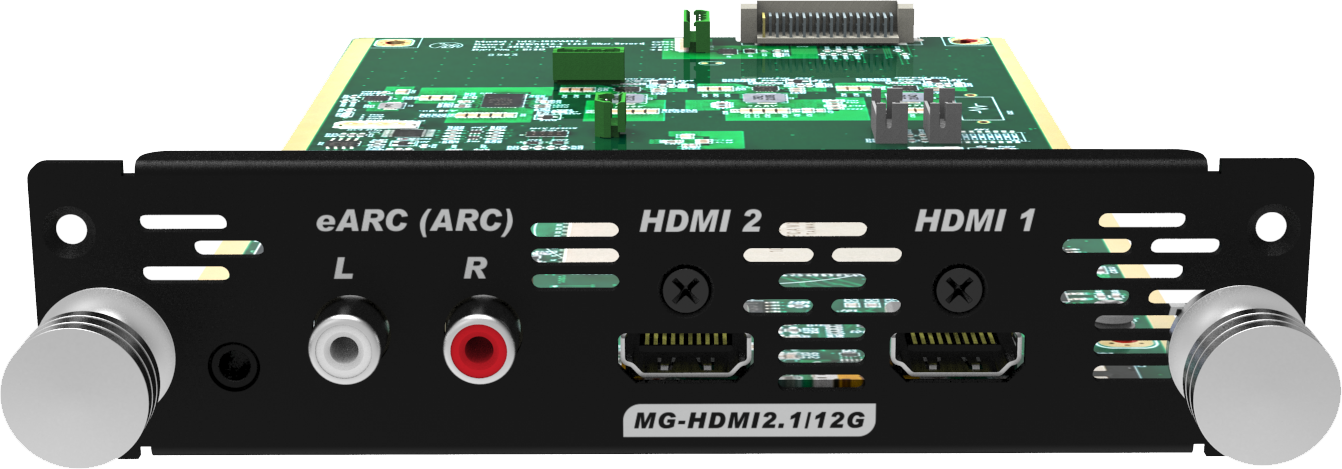

| HDMI2.1 - 12G SLOT (모델명 : MG-HDMI2.1-12G ) |
|---|
| Compliant |
HDMI 2.1 Version |
| Pixel Rate Range |
25MHz~1.48GHz / Up to 8Kx4K@60Hz(YCbCr4:2:0) |
| Signal Type |
TMDS, Fixed Rate Link (FRL - Maximum link : 12Gbps x 4Lane) |
| Pixel Encoding & Data Bit |
8K@30Hz_RGB4:4:4(8/10/12bit), YCbCr4:4:4(8/10/12bit), YCbCr4:2:2(8/10/12bit)
8K@60Hz_YCbCr4:2:0(8/10/12bit) |
| Color Space |
RGB, BT-601, BT-709, BT-2020, xvYCC-601, xvYCC-709 |
| HDCP |
HDCP 1.4 and 2.3 Version (FRL mode HDCP 2.3 Only) |
| Connector |
Type A, HDMI 2 Ports, eARC/ARC to analog L/R |
| Digital Audio |
L/R (1 Ch support eARC/ARC: Audio Return Channel) |

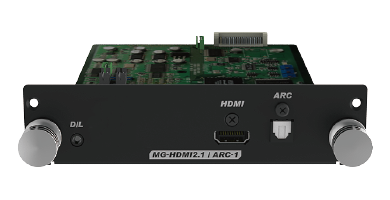

| HDMI2.1 SLOT (모델명 : MG-HDMI2.1/ARC-1) |
|---|
| Compliant |
HDMI 2.1 Version |
| Pixel Rate Range |
25MHz~1.2GHz / Up to 8Kx4K@60Hz |
| Signal Type |
TMDS, Fixed Rate Link (FRL - Maximum link : 10Gbps x 4Lane) |
| Pixel Encoding & Data bit |
8K@30Hz_RGB4:4:4(8/10bit), YCbCr4:4:4(8/10bit), YCbCr4:2:2(8/10bit)
8K@60Hz_YCbCr4:2:0(8/10bit) |
| Color Space |
RGB, BT-601, BT-709, BT-2020, xvYCC-601, xvYCC-709 |
| HDCP |
HDCP 1.4 and 2.3 Version (FRL mode HDCP 2.3 Only) |
| Connector |
Type A, HDMI 1 Port |
| Digital Audio |
8Ch Audio |

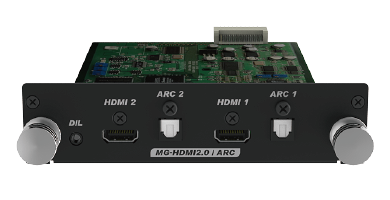

| HDMI2.0 SLOT (모델명 : MG-HDMI2.0/ARC) |
|---|
| Compliant |
HDMI 2.0 Version |
| Pixel Rate Range |
25MHz~600MHz / Up to 4Kx2K@60Hz (TMDS Clock 600MHz) |
| Signal Type |
RGB, YCbCr |
| Pixel Encoding & Data Bit |
4K@30Hz_RGB4:4:4(8/10/12bit), YCbCr4:4:4(8/10/12bit), YCbCr4:2:2(8/10/12bit)
4K@60Hz_RGB4:4:4(8bit only), YCbCr4:4:4(8bit only), YCbCr4:2:2(8/10/12bit) |
| Color Space |
RGB, BT-601, BT-709, BT-2020, xvYCC-601, xvYCC-709 |
| HDCP |
HDCP 1.4 and 2.2 Version |
| Connector |
Type A, HDMI 2 Ports, ARC 2 ports |
| Digital Audio |
8Ch Audio (SPDIF Audio Return Channel) |

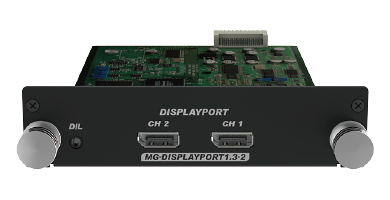

| DISPLAYPORT1.3 SLOT (모델명 : MG-DISPLAYPORT1.3-2) |
|---|
| Compliant |
DISPLAYPORT 1.3 Version |
| Pixel Rate Range |
8Kx4K@30Hz(7680x4320@30Hz), 5k(5120x2160@60Hz), 4K(3840x2160@120Hz)
/ HBR3 |
| Signal Type |
RGB, YCbCr |
| Color Space |
RGB, BT-601, BT-709 |
| HDCP |
Support HDCP 1.4 and 2.2 Version |
| Output Format |
RGB4:4:4, YCbCr4:4:4(8/10/12bit), YCbCr4:2:2(8/10/12bit) |
| Digital Audio |
I2S, 48KHz, 2Channels |
| Connector |
DP 2 Ports |

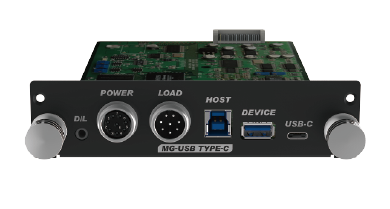

| USB TYPE-C SLOT (모델명 : MG-USB TYPE-C) |
|---|
| Compliant |
DISPLAYPORT 1.3 Version |
| Pixel Rate Range |
Up to 4K(3840x2160@60Hz) |
| Pixel Encoding & Data Bit |
HBR2(4Lanes)
RGB4:4:4(8/10Bit). YCbCr4:4:4(8/10bit), YCbCr(8/10bit)
4Kx2K@60Hz_RGB4:4:4(8bit only) |
| Color Space |
RGB, BT-601, BT-709 |
| HDCP |
HDCP 1.4 and 2.2 Version |
| Connector |
USB TYPE-A (Device)
USB TYPE-B (Host)
USB TYPE-C (Dual Role Port)
Power : External power source connector to MSPW-100W(Optional)
Load: External electric load connector to MSDL-100W(Optional) |
| Power Delivery Source |
Up to +25V/5A(100W) with external power test unit MSPW-100W(optional) |
| Power Delivery Sink |
Up to +25V/5A(100W) with external load test unit MSDL-100W(optional) |
| Digital Audio |
I2S, 48KHz, 2Channels |

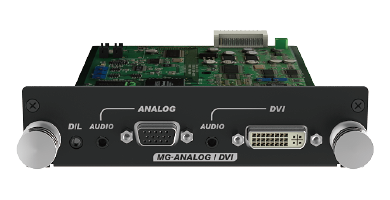

| ANALOG/DVI SLOT (모델명 : MG-ANALOG/DVI) |
|---|
| ANALOG |
Pixel Rate Range |
8~250MHz |
| Video Signal Type |
R,G,B (Load 75 ohms, 0~1.0V Programmable) |
| Output Connector |
15P D-Sub |
| Separate Sync |
HS, VS(3.0V~5.5Vp-p Programmable) / Inherited Sync Level is 4.8Vp-p |
| Analog Audio |
Stereo L, R |
| Connector |
ANALOG 1 Port, AUDIO 1 Port |
| DVI |
Compliant |
DVI 1.0 Support |
| Pixel Rate Range |
Dual Link : 25~330MHz |
| Transfer Type |
*Single TMDS 24Bit Input Mode
*Dual TMDS 12Bit Input Mode |
| HDCP |
HDCP 1.3 |
| Video Signal Type |
RGB |
| Connector |
DVI-D (DVI 1Port, Single/Dual), AUDIO 1Port |
| Analog Audio |
Stereo L, R |

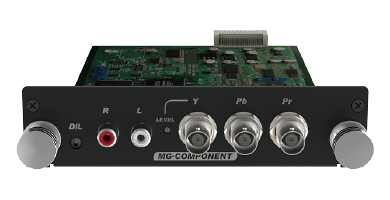

| COMPONENT SLOT (모델명 : MG-COMPONENT) |
|---|
| Output Mode |
Y, Pb, Pr (480i/p, 576i/p, 720p, 1080i/p, for ATSC and DVB Format) |
| Output Connector |
BNC |
| Analog Audio |
RCA L, R |
| Connector |
YPbPr 1Port, AUDIO R/L 1Port |

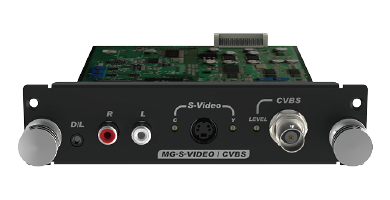

| S-VIDEO / CVBS SLOT (모델명 : MG-S-VIDEO / CVBS) |
|---|
| Output Mode |
*NTSC M,J (3.58MHz) / *NTSC443 (4.4MHz)
*PAL B,D,G,H,I (4.434MHz) / * SECAM (For=4.406MHz) |
| Subcarrier Stability |
25ppm (±25Hz / 1MHz) |
| Video Output |
Composite (BNC), S-Video
*Signal : CVBS (Connector : BNC)
*Signal : Y/C (Connector : 4Pin-Mini Din) |
| Note |
Closed Caption, V-Chip, Teletext |
| Analog Audio |
RCA L, R |
| Connector |
S-VDIEO 1 Port, CVBS 1 Port, AUDIO L/R 1 Port |
| 공통사항 |
|---|
| MG-CPU |
USB Port |
㈜마스타전자 전용 타이밍&패턴/메일 프로그램 업데이트 포트 |
| DEBUG Port |
㈜마스타전자 전용 디버깅용 포트 |
| SUB |
안전 모드 진입을 위한 SUB 버튼 |
| LAN |
㈜마스타전자 전용 업데이트 및 디버깅용 포트 |
| CPLD |
㈜마스타전자 전용 업데이트 포트 |
| Digital Audio Common Spec. |
Sample Rate |
32 / 44.1 / 48 / 88.2 / 96 / 176.4 / 192 KHz |
| Number of Channel |
8 Channels |
| Bit per Sample |
24 |
| Waveform |
Sine Wave |
| Frequency Range |
20Hz to 24KHz / 5Hz step |
| Level Range |
0dB to -110dB 0.5dB step |
| External Audio Input |
Optical, Coaxial |
| Special Control Mode |
Fix, Sweep, Swap, Optical, Mute |
| Analog Audio Common Spec |
Frequency Range |
20Hz to 24KHz / 5Hz step |
| Level Range |
0mVrms to 900mVrms / 5mVrms, 0~18dB |
| Waveform |
Sine Wave |
| Number of Channel |
2 Channels |
| Connector |
RCA |
| Special Control Mode |
Fix, Sweep, Swap, Optical, Mute |
| Scan & Function Group |
Scan Storage |
99 Group (1 Group : 24 Step) |
| Function Storage |
99 Group (1 Group : 32 Step) |
| Time & Pattern Data |
Timing |
999 Timing (User : 1~500, Default : 501~999) |
| Pattern |
999 Pattern (User : 1~500, Default : 501~999) |
| Others |
User Interface |
*Remote controller (모델명: MSRC-009L)
*Possible to Timing Parameter Edit
*USB, RS-232C |
| General Specification |
전원 |
AC 100~240V, 50/60Hz Auto Switch |
| 사용환경 |
온도 : 0°C ~ 40°C
습도 : 80% RH 이하 (Non-Condensing) |
| 크기 (WxDxH) |
319 x 350 x 150(162) mm |
| 무게 |
4Kg / Slot 1EA : 0.3Kg / Cover Slot : 0.2Kg |
|
본 제품은 예고 없이 사양 및 디자인이 변경될 수 있습니다. |
