The IHS-3G is a high-performance video signal converter that converts HDMI or DVI input signals into 3G-SDI output signals. It is designed to reliably use HDMI and DVI signals from various digital video devices within SDI environments, making it suitable for a wide range of applications including broadcasting, video production, CCTV, education, conference rooms, and industrial video systems.

The IHS-3G reliably converts high-quality video signals for seamless integration with SDI systems capable of long-distance transmission, while minimizing signal loss to maintain sharp video quality. It also offers high compatibility with a wide range of HDMI and DVI output devices, enabling existing video systems to be efficiently built or expanded into SDI-based environments.

With easy installation and stable operation, the IHS-3G is a reliable video signal conversion solution that delivers outstanding performance not only in professional video systems but also across a wide range of AV environments.

Product Features

• Optimized signal conversion using a high-quality dedicated A/D conversion chip
• High-quality circuit design required for professional broadcast systems
• Supports Full HD (1080p) resolution
• Video Input: YCbCr 4:2:2, YCbCr 4:2:0
• Video Output: YCbCr 4:2:2

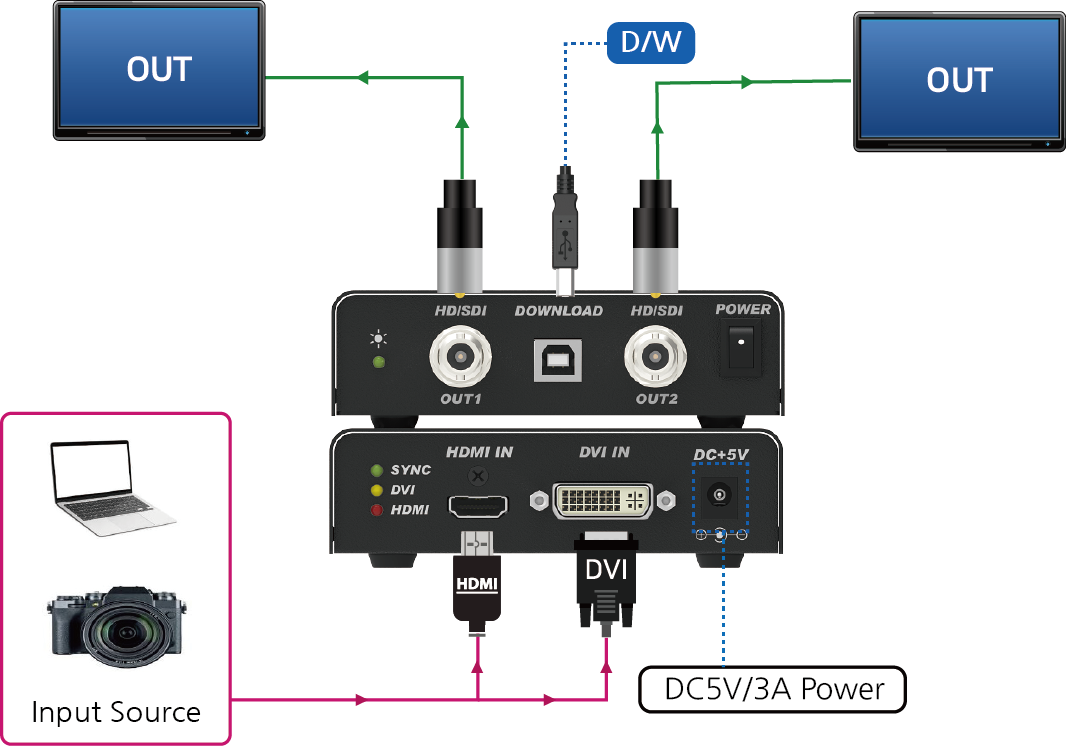

System Diagram
