IHX-14UD60
IHX-14UD60 이미지 1

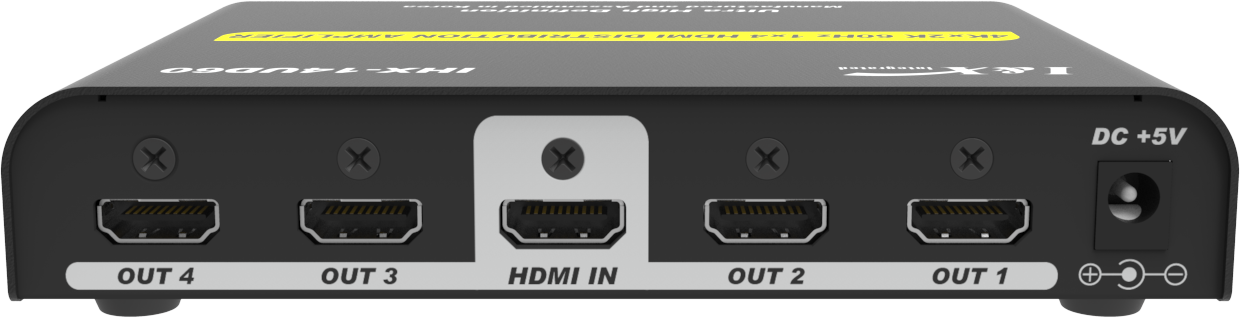

IHX-14UD60 이미지 2

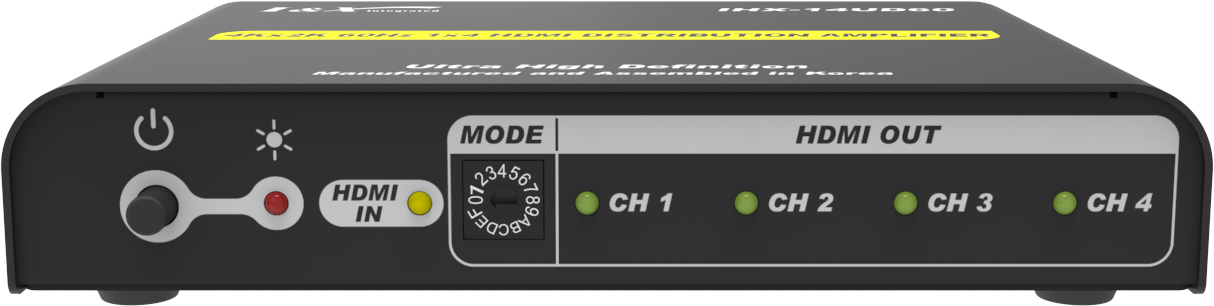

IHX-14UD60 이미지 3

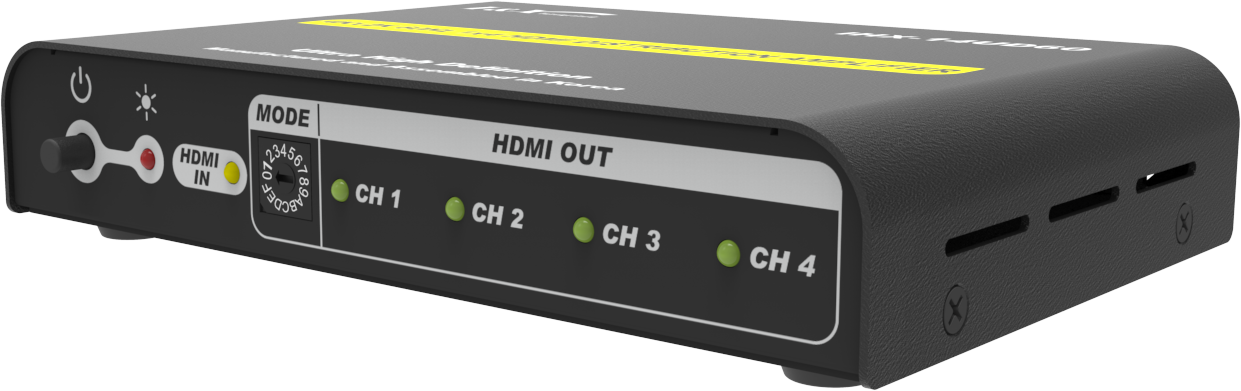

IHX-14UD60 이미지 4

Overview

The IHX-14UD60 is a high-performance 1:4 HDMI splitter that simultaneously distributes a single HDMI input signal to 4 HDMI outputs.


It can reliably output a single video and audio signal to four displays with identical picture quality, making it efficient for use in a variety of environments.


It also supports resolutions of up to UHD (4Kx2K) 4096x2160@60Hz, delivering sharp, clear, high-definition video without loss, making it well-suited for a wide range of AV systems, including conference rooms, educational facilities, exhibition halls, broadcasting environments, and digital signage.



Product Features


  • Max UHD (4Kx2K) input/output
  • Supports HDCP 2.2 Ver.
  • Fixed output at specified resolution
  • KC certified

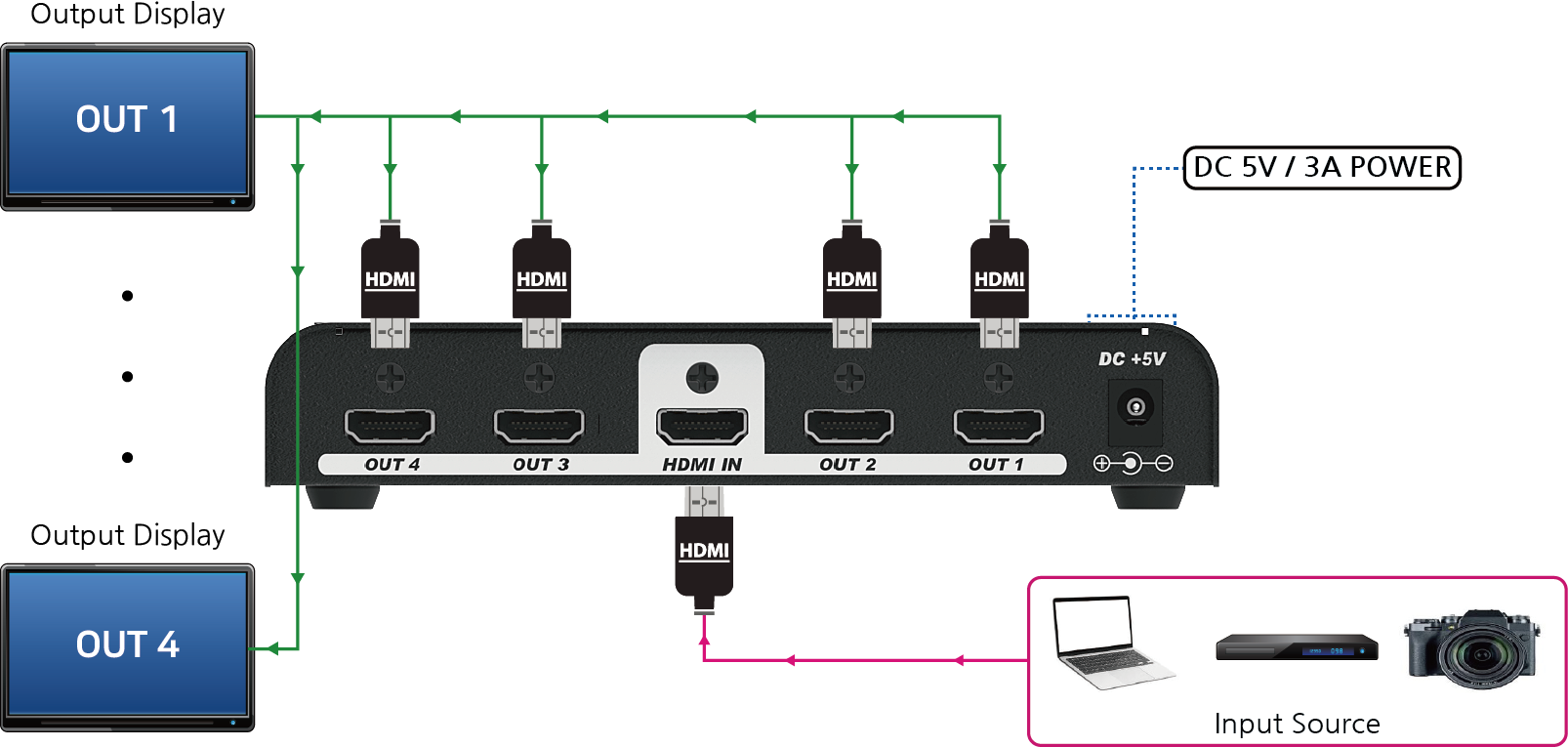

System Diagram


IHX-14UD60 구성도.png

Specification

SPECIFICATIONS
Input/Output Port Input Port HDMI 1 Port [HDMI Type A Connector]
Output Port HDMI 4 Ports [HDMI Type A Connector]
Date Rate Max 18.0Gbps (6.0Gbps per color)
Input/Output Signal TMDS Signal
Pixel Encoding YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0, RGB 4:4:4, BT2020
Remarks Max 4K x 2K(4096X2160@60Hz) Supported
3D Supported
HDCP 2.2Ver Supported
Mixed EDID Function
Power DC +5V / 3A
Dimensions (W x D x H) 151 x 101 x 27 (mm)
Weight 0.68kg
Specifications and design are subject to change without prior notice.
