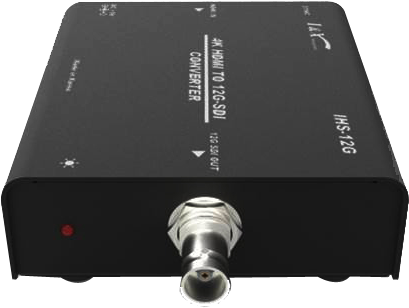

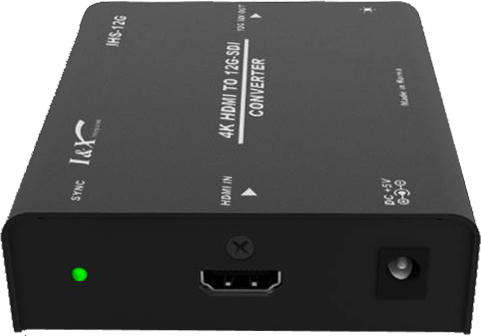

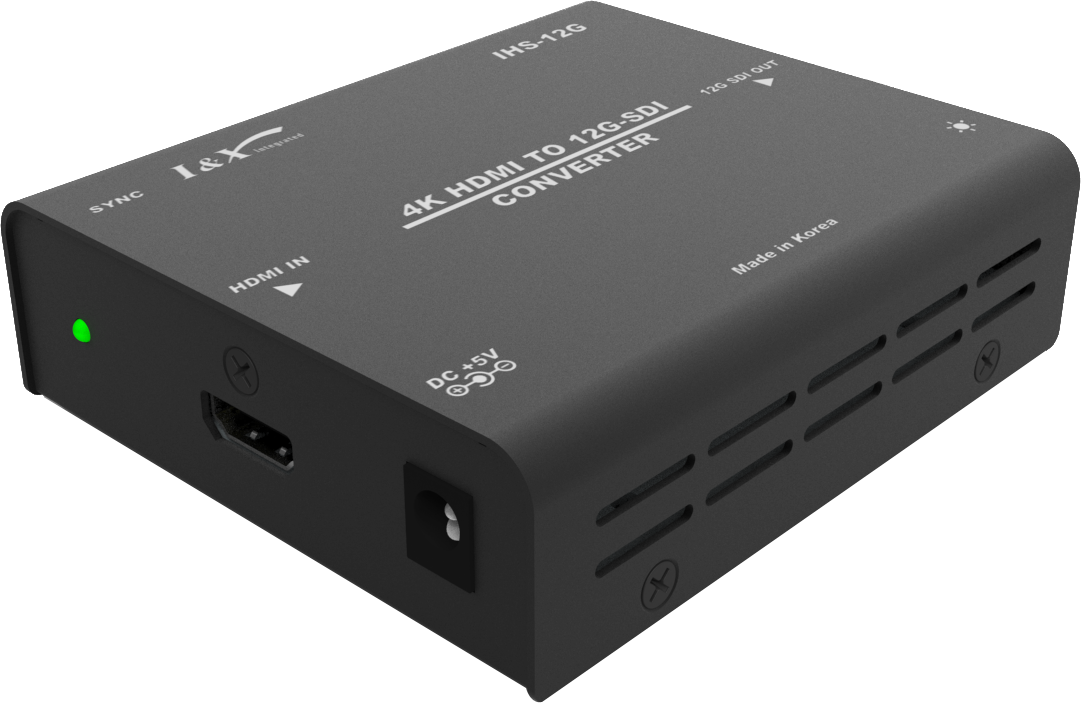

The IHS-12G is a high-performance video signal converter that reliably converts 4K HDMI input signals into 12G-SDI signals. While preserving the original quality of high-resolution video, it enables seamless integration between HDMI-based equipment and SDI-based broadcast and video systems, offering excellent versatility across a wide range of professional video environments.

The IHS-12G supports resolutions of up to 4K UHD, and its 12G-SDI output reliably transmits high-quality video signals over long distances. It is also designed to minimize signal loss and distortion, delivering outstanding performance even in environments that demand high reliability and stability, such as broadcasting stations, studios, video production facilities, performance venues, medical imaging systems, and control centers.

The IHS-12G allows existing HDMI equipment to be easily connected to professional SDI systems, and can be installed and used conveniently without complex setup. With excellent compatibility and reliable signal conversion performance, it provides an optimal solution for building a wide range of AV and broadcast systems.

Product Features

• Integrated support for 3G, 6G, 12G-SDI
• Supports audio at 48kHz or 96kHz, up to 16 channels
• Video Input: YCbCr 4:2:2, YCbCr 4:2:0
• Video Output: YCbCr 4:2:2 8bit

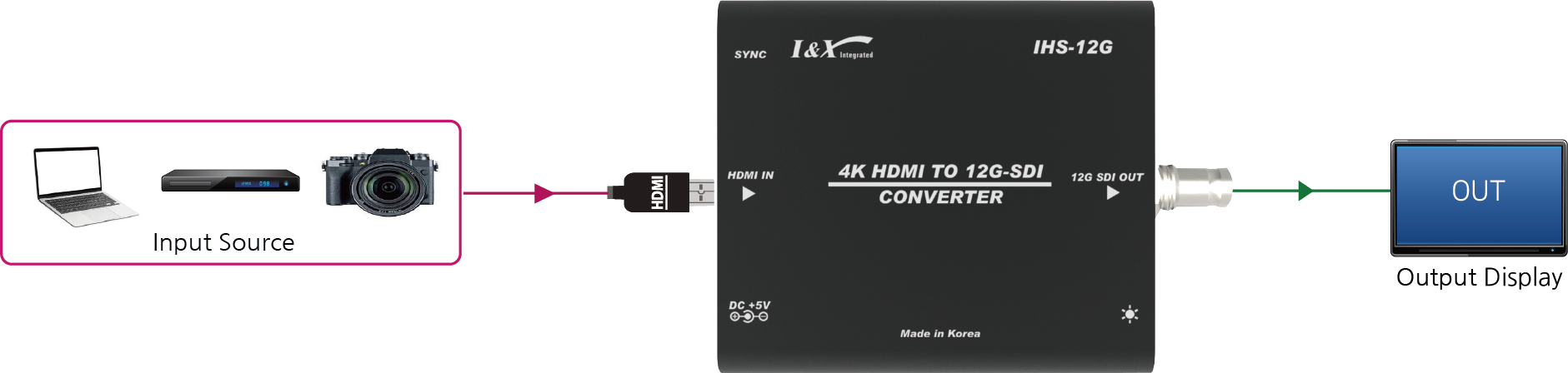

System Diagram
